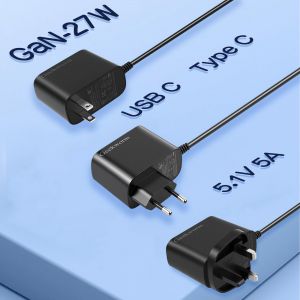

XSL-GaN-27W
Overview
An economical GaN solution designed specifically for Raspberry Pi 5, balancing performance and cost-effectiveness. Adopting GaN technology to achieve high efficiency power supply, it is more compact than traditional power supplies, with excellent operating temperature control and good stability.
Features
High-efficiency power supply and device compatibility
Supports USB PD (Power Delivery), which can provide a maximum voltage of 5.1V and 5A, and automatically matches the power demand of Raspberry Pi 5 to increase the power supply capacity of USB port to 1.6A*, which can satisfy the stable operation of external hard drives and other devices. It is also compatible with multi-voltage outputs (9V/3A, 12V/2.25A, 15V/1.8A), making it suitable for most USB PD protocol devices, such as mobile hard drive enclosures and thin and light notebooks.
Reliable Base Power Solution
With 27W total power output guaranteed, the design is optimised to provide a stable GaN power experience at a more competitive price. Although not equipped with the additional features of high-end models, it still features a complete circuit protection mechanism, including over-voltage, over-current and short-circuit protection, to ensure the safe operation of your equipment.
Adaptation Scenarios

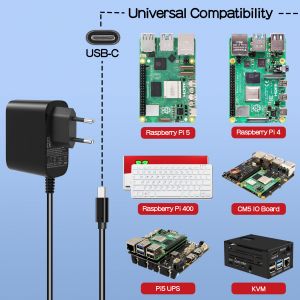

- Raspberry Pi 5 and compatible USB PD devices
- Users who need to drive USB peripherals but are on a budget
- Powering third party PD devices that require multiple voltage levels

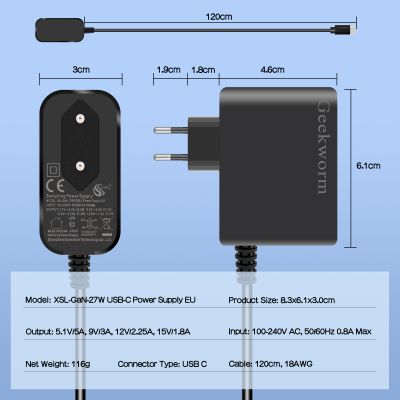

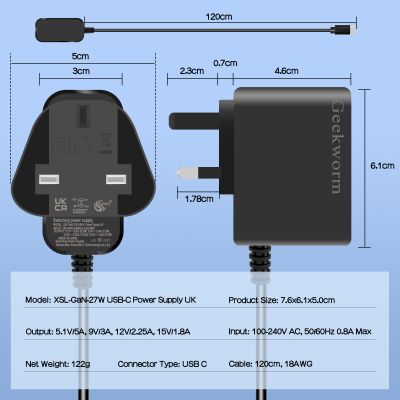

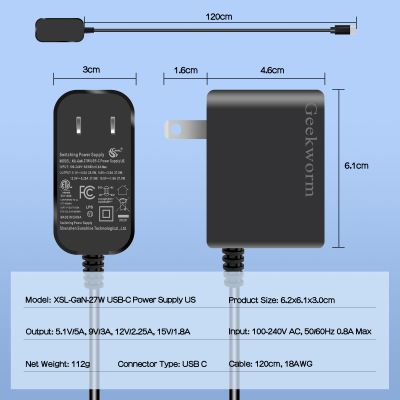

Specification
- Input: 100 – 240V AC, 50/60HZ 0.8A Max;
- Output: 5.1V/5A; 9V/3A; 12V/2.25A; 15V/1.8A (Power Delivery), ±5%
- Connector: USB-C
- Plug Type: EU plug / US plug / UK plugavailble

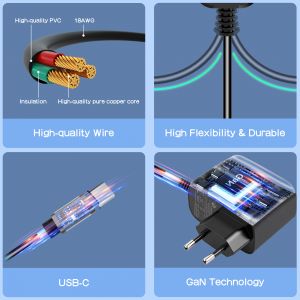

- Cable: 120mm 18AWG, Black
- With over voltage, over current short circuit protection.
Packing List
- 1 x GaN PD 27W Power Adapter for Raspberry Pi 5 (EU / US Plug)
