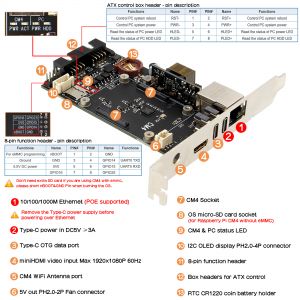

X651 kvm hardware diagram

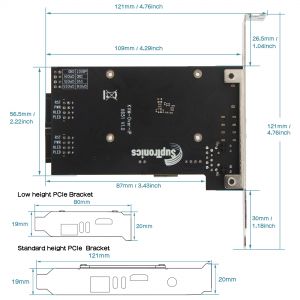

X651 Dimension

Overview

Introducing the X651, a state-of-the-art Raspberry Pi CM4-based KVM-over-IP remote management PCI Express card that seamlessly integrates into 1U and 2U form factors across PC, Sun, and Mac platforms. This innovative solution provides remote, unblocked, BIOS-level access and control to optimize server management. Accessible from any web browser, the X651 offers secure, stable, and high-speed KVM access anytime, anywhere.

With the IP KVM PCI card, users can exercise KVM control starting from the BIOS level and beyond. Easily reboot, monitor the entire boot process, and interact with your connected system effortlessly. Additionally, the integrated remote ATX power control feature enables convenient machine power management, including switching on/off, resetting, and remote monitoring of power and storage LED activity.

Moreover, the X651 is equipped with Power over Ethernet (PoE) support, allowing data and power transmission over a single Ethernet cable. This feature streamlines cable usage, eliminates the need for separate power supplies and outlets, and enhances overall convenience and efficiency in network setups.

---

Geekworm KVM family products:

Model	Compatible With	Form Factor	Max Input Resolution	ATX Control	RTC Chipset	OLED display	PoE	RS232 Console	Ethernet	M.2 NVMe Socket	Control of PCs	USB HUB	I2S audio
KVM-A3 V1.6	Raspberry Pi 4	HAT	1920x1080 @50Hz	Yes	DS1307	0.96"	No	No	1GbE	No	1	No	Yes In-phase I2S wire
KVM-A8 V1.8	Raspberry Pi 4	PCI	1920x1080 @50Hz	Yes	PCF8563	0.96" (Equipped with a 2P wire to connect the OLED)	802.3af	No	1GbE	No	1	No	Yes Inverted-phase I2S wire
KVM-A4 V2.0	Raspberry Pi 2W	HAT	1920x1080 @50Hz	Yes	DS1307	0.96"	No	No	No	No	1	No	No
X680 V1.5	Raspberry Pi CM4	Box	1920x1080 @60Hz	Yes	PCF8563	0.96"	No	No	1GbE	2280	4	Yes	No
X680 V1.3 Updated to V1.5 now	Raspberry Pi CM4	Box	1920x1080 @50Hz	Yes	DS1307	0.96"	No	No	1GbE	2280	4	Yes	No
X651 V1.0	Raspberry Pi CM4	PCI	1920x1080 @60Hz	Yes	DS1307	0.96"	802.3af	No	1GbE	No	1	No	No
X650 V1.3	Raspberry Pi CM4	PCI	1920x1080 @50Hz	Yes	DS1307	No	No	No	1GbE	No	1	No	No
X650 V1.5	Raspberry Pi CM4	PCI	1920x1080 @60Hz	Yes	DS1307	No	No	No	1GbE	No	1	No	No
X652 V1.0	Raspberry Pi CM4	PCI	1920x1080 @60Hz	Yes	DS1307	No	802.3af (POE injector is required due to compatibility issues)	No	1GbE	2280	1	No	No

Features

For use with	Raspberry Pi CM4
Key Features	Built on the Raspberry Pi Compute Module 4 platform Compatible with all CM4 lite variants, as well as the 16GB and 32GB eMMC models Reliable remote network access to servers and computers Installs justs like any PCI card into a tower / desktop PC Low profile and standard profile bracket Inside-both Mini and standard desktop host workable Supports HDMI input resolutions up to 1920x1080 at 60Hz Supports HDMI audio capture HDMI Full HD capture based on the TC358743 chip OTG Keyboard & mouse; Mass Storage Drive emulation Hardware Real-Time Clock (RTC) with CR1220 coin battery socket Compatible with PC, Mac, Linux, and Sun Systems Gigabit Ethernet that supports data transfer speeds of up to 1000 Mbps PoE Supported – Power over Ethernet for simplified installation Supports booting from Micro-SD, CM4 eMMC Supports ATX control for powering the machine on/off and resetting it Supports powering via USB-C Equipped with a cooling fan to dissipate heat from the Raspberry Pi CPU
Technical Specification	Power supply: 5Vdc +/-5% 3A via USB-C 5Vdc +/-5% via POE (IEEE 802.3af) Ports & Connectors: Type-C power socket x1 Type-C OTG socket x1 10/100/1000M RJ45 Ethernet jack x1 ATX control box header 2.54pitch 2x8pin x2 HDMI input resolutions: Max 1920 x 1080P 60Hz Product Size: 122.5mm x 121.5mm x 26mm
Notes	The X651 Kits do not come with a CM4, so you will need to provide your own. This includes any of the CM4 lite variants, as well as the 16GB and 32GB eMMC models. Don't power the X651 via USB Type-C socket if powering over Ethernet.

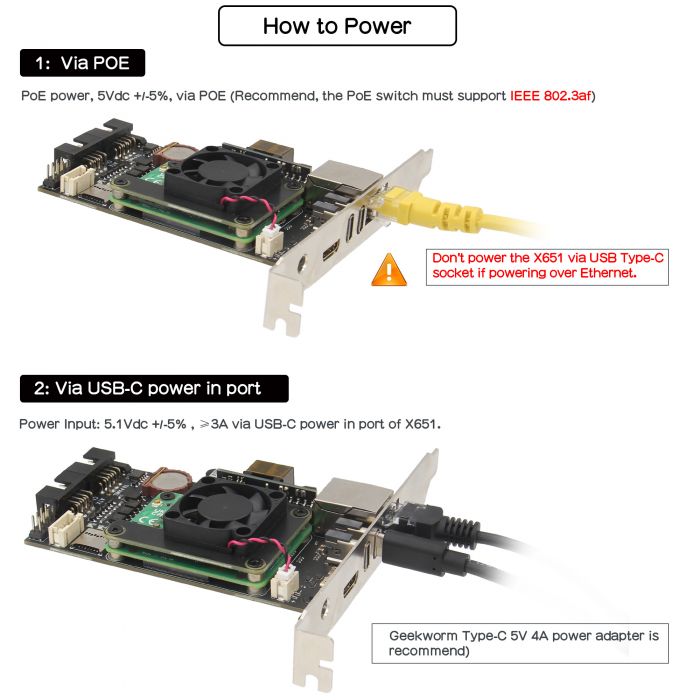

How to Power

• 5Vdc +/-5% 3A via USB-C (Power Via USB Type-C PWR port of X651 V1.0)
• 5Vdc +/-5% via POE (IEEE 802.3af) (Recommend, but it's expensive because you need a poe switch, the poe switch must support 802.3af.)

How to Cool

• X651 equipped with an active cooling fan board (X-FAN30 V1.0) that can cool your Raspberry Pi CM4， and X-FAN30 V1.0 is included in the Packing List;

• In fact, if you don't like fans, you can try C235, which can fully meet the cooling needs of CM4, but C235 is NOT included in the Packing List;

•

  X-FAN30 V1.0

•

  C235

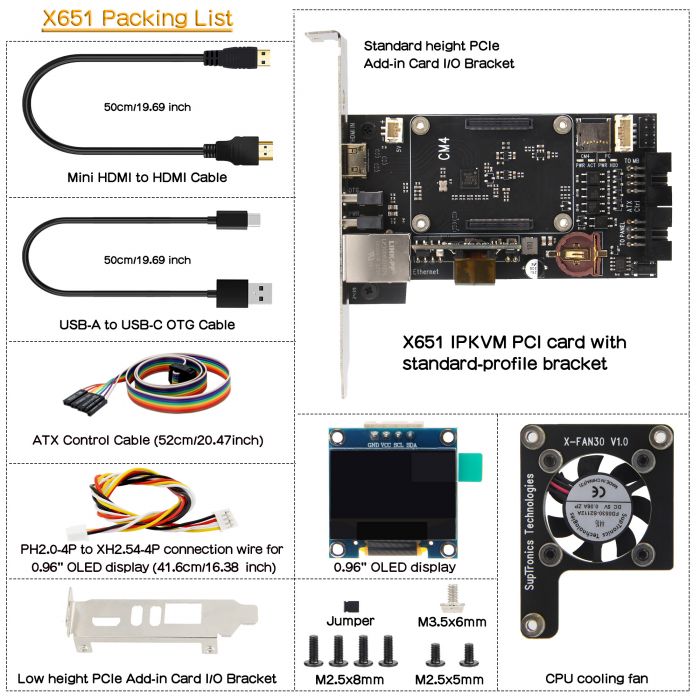

Packing List

• X651 IPKVM PCI card with standard-profile bracket x1 - CM4 not included
• PCI low-profile bracket x1
• ATX control rainbow cable 0.52M x1
• CPU cooling fan x1
• 0.96" OLED display x1
• PH2.0-4P to XH2.54-4P connection wire for 0.96" OLED display x1
• Mini HDMI to HDMI (Type A) cable 0.5M x1
• USB-C to USB-A OTG data cable 0.5M x1
• Screw pack x1

User Manual

PiKVM is a Free and Open Source Software that is released under the GPLv3 license. The Operating System (OS) image provided here is solely for the purpose of hardware testing. For commercial use, it is advised to directly contact the developers of PiKVM.

• Hardware Installation: X651 Hardware
• How to make it work: X651 Software

FAQ

• First of all, we recommend you to get more FAQ information on the official website: official FAQ, or check the following FAQ;
• You can post a issue ticket at Geekworm forum or email to us (support@geekworm.com) and attached your installation pictures or videos to get some help.
• Blog sharing for reference: https://www.andysblog.de/kvm-over-ip-pikvm-als-bausatz

Q1: Question 1

A: Place the answer here.
