X1501 CM5 IO Carrier Board-Interface
X1501 CM5 IO Carrier Board
X1501 CM5 IO Carrier Board
Support Hailo-8 AI Accelerator
X1500 VS X1501


Overview

The X1501 is a purpose-built IO board tailored for the Raspberry Pi Compute Module 5 (CM5) that integrates dual Ethernet connectivity (1GbE and 2.5GbE), two full-size M.2 NVMe slots, and a range of peripherals into an ultra-compact design. This carrier board is engineered to simplify system development, enabling you to quickly build solutions using readily available off-the-shelf components, such as existing Raspberry Pi HATs and M.2 NVMe devices.

For ease of integration, the board features a streamlined layout with major user connectors positioned along one edge, making enclosure design straightforward and efficient. Whether you're developing with the Compute Module 5 or deploying it as part of an embedded end product, the X1501 is designed to meet your needs with flexibility and performance.

The difference between X1500 and X1501

X1500 X1501
Compatible with Raspberry Pi CM5 Raspberry Pi CM5
1GbE Ethernet Port ✔ ✔
2.5GbE Ethernet Port ❌ ✔
USB-C Power In Port ✔ ✔
USB-A Ports 2 x USB2.0 Type-A, 2 x USB3.0 Type-A 1 x USB2.0 Type-A, 1 x USB3.0 Type-A
Dual M.2 2280 NVMe SSD Slots ✔ ✔
Dual HDMI 2.0 Ports ✔ ✔
Dual MIPI DSI/CSI-2 Connectors ✔ ✔
MicroSD Card Slot ✔ ✔
Power Button ✔ ✔
RTC Battery Socket ✔ ✔
4Pin PWM Fan Port ✔ ✔
Support Hailo-8 AI Accelerator ✔ ✔
PoE header ✔ ✔
40pin GPIO header ✔ ✔
12pin Configurable header J2 ✔ ✔
Jumper setting for CAM/DISP1 J6 ✔ ✔
PoE HAT support Currently no compatible PoE HAT Currently no compatible PoE HAT
Matching Case X1500-C1 X1500-C1
Matching Cooler C519 C519

Features

For use with

Raspberry Pi Compute Module 5 (CM5)

Key Features
  • Compact Design (87x88x25mm): Combines a small footprint with a rich array of I/O peripherals for versatile applications.
  • Dual Ethernet Ports: Features both 1GbE with PoE+ support (for simplified power delivery) and a 2.5GbE port capable of speeds up to 2500Mbps (2.5Gbps) for high-performance networking.
  • Dual M.2 2280 NVMe SSD Slots: Supports up to 8TB (4TB+4TB) via PCIe 2.0 (5Gbps) for fast data transfers and boot times, compatible with M.2 NVMe SSDs in 2280, 2242, and 2230 form factors.
  • Dual HDMI 2.0 Ports: Enables dual 4K display output for multimedia or industrial use cases.
  • Dual MIPI DSI/CSI-2 Connectors: 22-pin FPC connectors (0.5mm pitch) compatible with Raspberry Pi 5 CSI and DSI modules for seamless camera and display integration. CAM/DISP 0 supports both displays or cameras. CAM/DISP 0 supports using a signal to power down the camera to save power. CAM/DISP 1 typically needs two jumpers fitting to J6 to route the I2C signals form the GPIO connector to the camera connector. CAM/DISP 1 can be be used with displays and cameras. If it is used with a camera, it isn’t possible to power down the camera. Also refer to Raspberry Pi Compute Module 5 IO Board datasheet (Page 5)
  • MicroSD Card Slot: Supports Compute Module 5 Lite variants (without onboard eMMC).
  • Raspberry Pi HAT+ Compatibility: Reuse existing Raspberry Pi HATs to save time and reduce development costs.
  • Convenient Power Button: Easily wake or shut down the Compute Module 5 with a single press.
  • RTC Battery Socket (CR1220 coin battery is not included): Ensures accurate timekeeping during power interruptions.
  • PWM Fan Support: Includes a fan power connector for adjustable cooling in demanding environments.
  • USB-C Port: Handles both power delivery and OS image loading directly into the CM5’s eMMC.
  • Configurable Jumpers: Allows disabling features like wireless connectivity or EEPROM writing for customization.
  • Streamlined Connector Layout: USB, HDMI, Ethernet, and power ports are grouped along one edge for clean cable management and easy enclosure integration.
Technical Specification

Power supply:

  • 5.1Vdc +/-5% 5A power via USB-C power supply


Connectivity:

  • 1 x USB-C (Power in and OS image loading)
  • 1 x 1Gigabit RJ45 Ethernet with PoE+ HAT+ support (requires separate Raspberry Pi PoE+ HAT+)
  • 1 x USB2.0 Type-A
  • 1 x USB3.0 Type-A
  • 1 x 2.5 Gigabit RJ45 Ethernet
  • Standard 40-pin GPIO header
  • microSD card socket for Compute Module 5 Lite modules
  • 2 x M.2 M key NVMe sockets
  • 4-pin fan connector
  • 2 x MIPI DSI/CSI-2 FPC connectors (22-pin 0.5 mm pitch cable)
  • Raspberry Pi HAT+ connector
  • RTC battery socket

Video: 2 x full-size HDMI 2.0 connectors


Input power:

  • External +5V USB-C PSU
  • Power button to wake and shut down Compute Module 5


Form factor: 85mm x 87mm

Important Notes

For optimal performance, please use the official Raspberry Pi 27W USB-C Power Supply or an alternative power supply capable of delivering 5.1V at 5A. An incompatible power supply with a lower output voltage may fail to power on the system..

Packing List

CM5 carrier board Kit

  • X1501 V1.0 CM5 carrier board x1
  • M.2-A1 extension board x2 (to fix M.2 2230 and 2242 SSDs)
  • 2.54mm jumer cap x2
  • M2*3 screw x 6

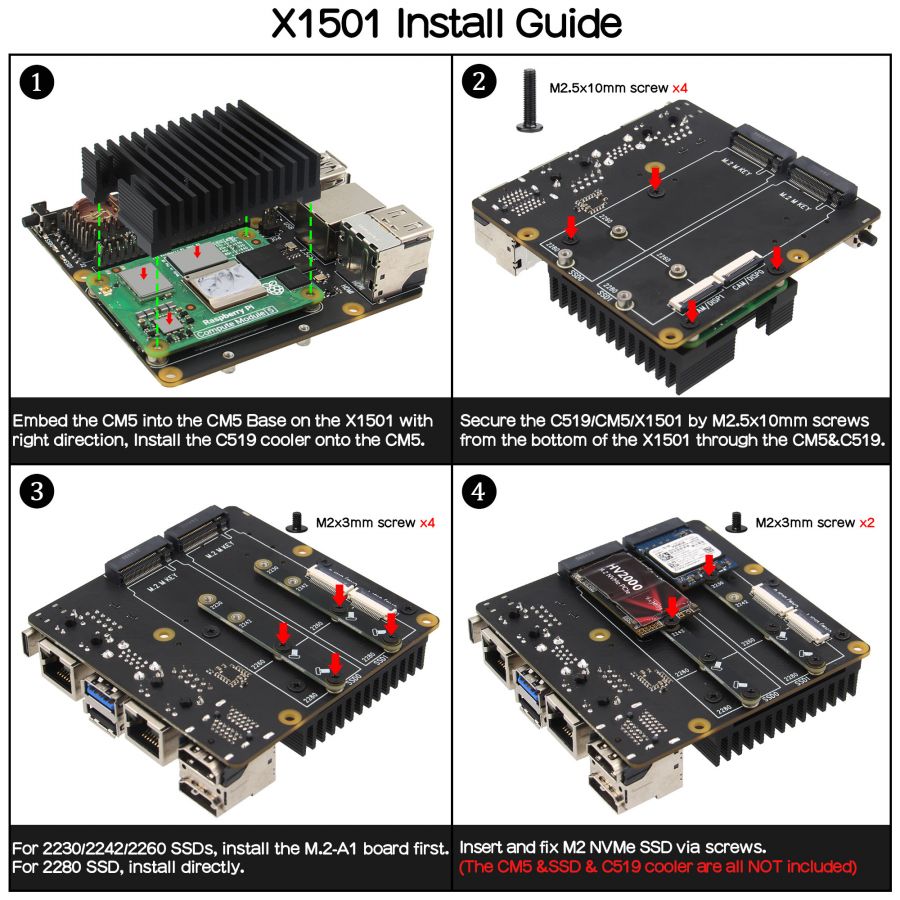

User Manual

Video Guide

Installation Video: https://youtu.be/H1vgT2lrJQI

Matching Case

X1500-C1 case is designed for the raspberry pi CM5 & X1500/X1501 IO Board only, compatible with C519 heatsink.

  • Case dimensions: 110 x 90 x 33 mm / 4.33 x 3.54 x 1.30 inches

  • X1500-C1 packing list

  • X500-C1

FAQ

Expand

Q. Why can't X1500/X15011 boot up?

Expand

Q: Does the X1500/X1501 support Hailo-8 M.2 AI Accelerator?

Expand

Q: Is X1500/X1501 compatible with POE+ Hat?

Expand

Q: Is the X1501 2.5G ethernet port on the PICe bus along with the M.2 devices?
