Overview
The X15-C1 features a rugged two-piece metal construction designed for Compute Module 5 and X1500/X1501 IO boards. Its precision structural design combined with an efficient heat dissipation system ensures stable and reliable operation. Ideal for industrial, embedded, and high-performance computing applications, the X15-C1 delivers a perfect balance of protection, cooling, and accessibility.
The X15-C1 case provides flexible expansion options, including: an 80×10mm PWM-controlled cooling fan (X15-F1) that delivers 19.68 CFM for active thermal management in high-power applications; an X15-POE+ HAT supporting 802.3at Power-over-Ethernet for simplified cabling; and compatibility with additional low-profile HATs.
Features
- Form factor: 96mm x 90mm x 44mm
- Precision cut-outs & clear labeling: Ensures easy access to ports and components with intuitive identification.

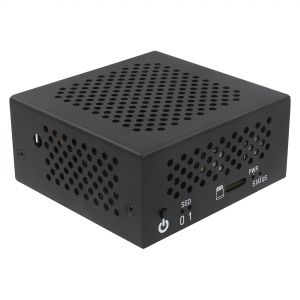

- Optimized thermal performance: Extensive ventilation holes on every side enhance heat dissipation.

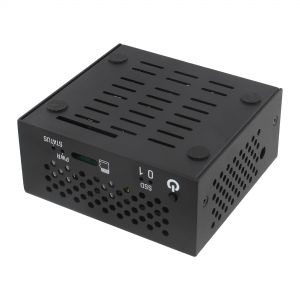

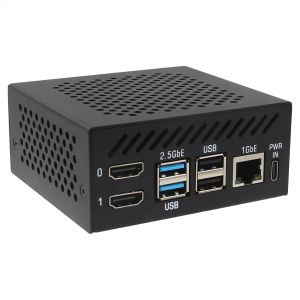

- Comprehensive port access: Side cut-outs provide unobstructed access to HDMI, Ethernet, USB-A, USB-C (power input), and the SD card slot.
- Expandable connectivity: Features a bottom slot for seamless integration of CSI-2 cameras or DSI displays.
- Wireless antenna support: Includes a dedicated mounting hole for an external antenna.
- Offers flexible configuration options: X15-F1 8010 PWM-controlled fan, X15-POE+ HAT and other low-profile expansion HATs.
Technical Specification
- Form factor: 96mm x 90mm x 44mm
- Weight: Approx 230g
- Product material: Sheet metal
Packing List
- 1 x X15-C1 Metal case
- 4 x M3 screws
- 4 x M2.5x5mm screws
User Manual
- Hardware Installation: https://suptronics.com/Raspberrypi/cm5/x15-c1_assembly.html
