X15-F1
Jump to navigation
Jump to search
Note
- The 40-pin GPIO header of the X15xx board is no longer accessible after the X15-F1 fan is installed.
- The X15-F1 fan is not compatible with the current X1500-C1 case and cannot be installed inside it.
Overview

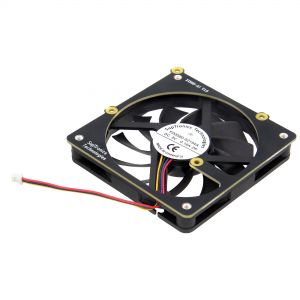

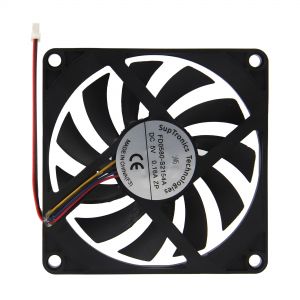

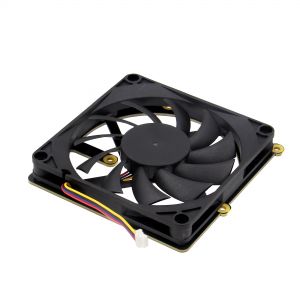

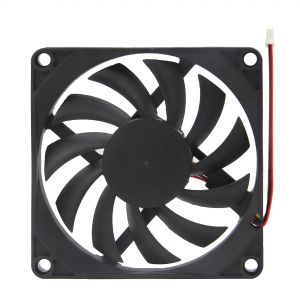

The X15-F1 is an advanced active cooling module specifically designed for X15xx-series CM5 I/O boards while maintaining full compatibility with existing Raspberry Pi cooling solutions. It integrates an 80×80mm PWM-programmable fan delivering adjustable airflow up to 19.68 CFM (0.56 m³/min), ensuring optimal thermal performance for Compute Module 5 systems under sustained high-load conditions.
Features
- Excellent cooling performance: 80×80mm PWM-controlled fan with 19.68 CFM max airflow, 8x greater airflow than the Raspberry Pi IO case fan, Real-time speed adjustment for dynamic thermal management.

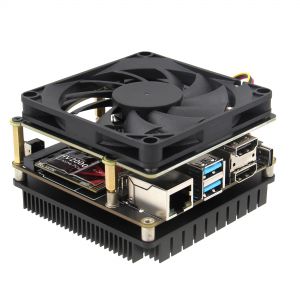

- Easy installation: Dedicated fan bracket board that enables seamless installation above the I/O boards, Zero-interference design with Raspberry Pi heatsinks/coolers.
- Industrial-Grade Reliability: Stable operation under continuous full load, Vibration-resistant mounting system.
Specification
- Operating voltage:5V DC (4.5 – 5.5V) supplied via four-pin fan header on a carrier board
- Start voltage:≥ 3.5V
- Power consumption:0.8W
- Rated current:0.16 ± 0.02A
- Fan speed control:Pulse width modulation control with tachometer
- Maximum fan speed:2500 RPM ± 10%
- Maximum airflow:19.68 CFM
- Noise:26.3 dBA
- Dimensions:80×80×10mm (L×W×H)
- Cable length:70 mm
Packing List
- 1 x 8010 PWM fan

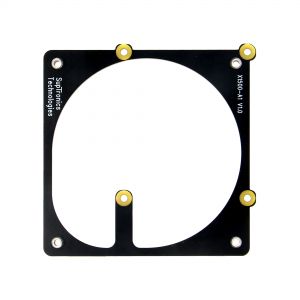

- 1 x Fan X1500-A1 V1.0 bracket
- 1 x screw pack
