X1500-C1 Case for CM5 with X1500
X1500-C1 Case for CM5 with X1500
X1500-C1 Case for CM5 with X1500
X1500-C1 Case for CM5 with X1500
X1500-C1 Case for CM5 with X1501
X1500-C1 Case for CM5 with X1501


Overview

The X1500-C1, a sleek and robust sheet metal enclosure designed specifically for the Geekworm X1500 and X1501 CM5 IO Carrier Board. Engineered for durability and flexibility, this compact chassis combines industrial-grade strength with smart design to meet diverse installation needs.

Features

  • Model: X1500-C1

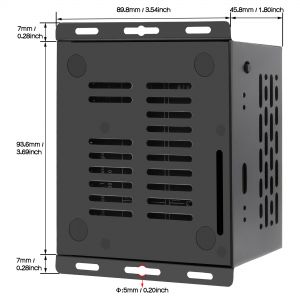

  • Compact & Space-Saving Design: Optimized dimensions ensure a small footprint, ideal for space-constrained environments while maintaining full compatibility with the X1500/X1501 boards.
  • Enhanced Thermal Management: Supports seamless integration of the C519 heatsink, ensuring efficient heat dissipation for sustained high-performance operation.
  • Versatile Mounting Options: Features side-protruding reinforced mounting brackets for easy wall-mounting or vertical/horizontal installation in racks, cabinets, or DIY projects.
  • Antenna-Ready Design: Pre-drilled antenna mounting holes allow hassle-free installation of external antennas, perfect for Wi-Fi, Bluetooth, or other wireless connectivity modules.
  • Rugged Metal Construction: Crafted from high-quality steel or aluminum (subject to final specs), offering superior protection against physical damage, EMI interference, and dust.
  • Tool-Free Assembly: Streamlined structure enables quick and tool-free installation of the X1500/X1501 board, minimizing setup time.

Packing List

  • 1x X1500-C1 Metal Case
  • 4x M2.5x5mm screws
  • 4x Anti-slip foot mats
