Latest revision as of 11:47, 9 February 2026

X1208 V1.0 Interface
X1208 V1.0
X1208 V1.0
X1208 V1.0 with Raspberry Pi 5
X1208 V1.0
X1208 V1.0 with Raspberry Pi 5 & SSD card

SAFETY INSTRUCTIONS AND WARNINGS

  • It is essential to read and understand these safety instructions and warnings before charging your batteries.
  • Lithium Polymer and Li-ion batteries are volatile. Failure to read and follow the instructions below may result in fire, personal injury, and damage to property if charged or used improperly.
  • Never make a wrong polarity connection when charging or discharging battery packs. Always double-check the polarity of the battery's connector to ensure that "+" is connected to "+" and "-" is connected to "-".
  • Do not mix and use old batteries with new batteries, or batteries with different brand names.
  • Lithium batteries have a limited cycle life. Please replace old batteries with new ones when they reach their service life or when they are two years old, whichever comes first.
  • When charging the Battery Pack, please place the battery in a fireproof container. Do not leave the UPS shield on wood material or carpet unattended.
  • Keep the UPS shield away from children to ensure their safety.
  • Ensure your fingers do not touch the solder pads when inserting the battery into the battery holder, as this could cause a short circuit. This is extremely important!!!
  • Make sure to insert the battery before turning on the UPS.
  • Make sure to insert the battery before connecting the external charger to charge it.
  • Please watch Main Video and Tutorial Video regarding 18650 batteries at: https://www.staysafebattery.com/en/
  • Battery Recommend for Geekworm UPS board, please refer to: File:NCR18650B.pdf

Overview

The X1208 UPS+M.2 NVMe Shield is engineered to provide the Raspberry Pi 5 with both a reliable power source and enhanced storage. It features an integrated M.2 NVMe SSD slot, ensuring robust data backup even during a power loss. This powerful combination safeguards valuable data, boosts system reliability, and guarantees continuous operation.

The X1208 delivers a stable 5.1 V/5 A backup power supply, enabling uninterrupted performance for demanding setups—from intensive applications to multiple peripherals. Its advanced power-management system intelligently monitors the Pi's status, automatically cutting power after shutdown to optimize battery life with ultra-low standby consumption. The board ensures seamless power switching during outages or adapter failures and supports convenient features such as auto power-on and AC power-loss detection.

*Caution: The Matching Case section only indicates compatibility between the case, UPS and Raspberry Pi 5 Board, and excludes products in the Product Matching Reference section. Compatibility of these referenced products with the case is subject to their actual specifications.
Model Compatible with Mounting Position Lithium battery type Battery Holders Power Input Connector Power Output Connector Matching Case Product Matching Reference Note
X1200 Raspberry Pi 5 Bottom 3.7V 18650 Battery 2-Cell
  • 5Vdc 5A via USB Type-C of X1200
 5Vdc Power Output XH2.54-2P x2 X1200-C1 -
X1201 Raspberry Pi 5 Bottom 3.7V 18650 Battery 2-Cell
  • 5Vdc 5A via USB Type-C of X1201
  • 5Vdc ≥3A via XH2.54-2P connector of X1201
 5Vdc Power Output XH2.54-2P x3 X1201-C1 Ultra-thin
X1202 Raspberry Pi 5 Bottom 3.7V 18650 Battery 4-Cell
  • 5Vdc 5A via USB Type-C of X1202
  • 6-18Vdc ≥3A via DC 5521 power jack of X1202
  • 6-18Vdc ≥3A via XH2.54-2P connector of X1202
 5Vdc Power Output XH2.54-2P x2 X1202-C1 -
X1203 Raspberry Pi 5 Bottom 3.7V Lithium Battery No battery holder
  • 5Vdc 5A via USB Type-C of X1203
  • 6-18Vdc ≥3A via DC 5521 power jack of X1203
  • 5Vdc ≥3A via XH2.54-2P connector of X1203
 5Vdc Power Output XH2.54-2P x2 - -
*X1205 Raspberry Pi 5 Bottom 3.7V 21700 Battery 2-Cell
  • 5Vdc 5A via USB Type-C of X1205
  • 9-18Vdc ≥3A via DC 5521 power jack of X1205
  • 9-18Vdc ≥3A via XH2.54-2P connector of X1205
 5Vdc Power Output XH2.54-2P x2 X1205-C1 -
*X1206 Raspberry Pi 5 Bottom 3.7V 21700 Battery 4-Cell
  • 5Vdc 5A via USB Type-C of X1206
  • 5-6Vdc ≥3A via DC 5521 power jack of X1206
  • 5-6Vdc ≥3A via XH2.54-2P connector of X1206
 5Vdc Power Output XH2.54-2P x2 X1206-C1 -
*X1207 Raspberry Pi 5 Top 3.7V 21700 Battery 1-Cell
  • 5Vdc 5A via USB Type-C of X1207
  • 35-57VDC powering over Ethernet
 - X1207-C1 Support PoE-Powered
*X1208 Raspberry Pi 5 Top 3.7V 21700 Battery 1-Cell
  • 5Vdc 5A via USB Type-C of X1208
 - X1207-C1 - Support M.2 NVMe SSD 2230/2242/2280
*X1209 RPi 5B/4B/3B/3B+ Top 3.7V Lithium Battery No battery holder
  • 5Vdc ≥3A via USB Type-C of X1209
  • 6-18Vdc ≥3A via DC 5521 power jack of X1209
 5Vdc Power Output XH2.54-2P x2 - -
*X728 All RPi that use a 40-pin header Top 3.7V 18650 Lithium Battery 2-Cell
  • 5Vdc 5A via USB Type-C of X728
  • 5Vdc ≥4A via DC 5521 power jack of X728
 5Vdc Power Output
  • The 40-pin header
  • XH2.54-2P x2
 - -
*X-UPS1 All RPi & Most Single Board Computers (SBC) that uses 12Vdc or 5Vdc Standalone 3.7V 18650 Lithium Battery 4-Cell
  • 6-18Vdc ≥3A via DC 5521 power jack of X-UPS1
  • 5Vdc Power Output XH2.54-2P x2
  • 12Vdc Power Output XH3.96-2P x2
 -
  • GPIO Pin-connected standalone design, boasting universal compatibility
  • Power Adapter: PSU60
 -

Features

For use with

Raspberry Pi 5

Key Features

UPS Output

  • Built for continuous, long-lasting operation -providing unwavering power for always-on Raspberry Pi 5 systems
  • Supports a maximum current output of 5.1V 5000mA, suitable for most Raspberry Pi 5 applications
  • Integrated Advanced Power MOSFET with an equivalent of 7mΩ RDS(ON) to minimize power loss
  • Power the Pi 5 directly through the 40-pin header, eliminating the need for cables and soldering

Battery Charging

  • Supports battery charging with a capacity of 1500mA
  • Battery charging control can be managed via GPIO
  • Provides protection against battery overcurrent and overvoltage
  • Built-in protection against reverse connection of battery cells
  • Integrated Maxim's fuel-gauge systems for reading battery voltage and percentage over I2C
  • On-board LEDs indicate battery charging and discharging levels of 25%, 50%, 75%, and 100%
  • Features a single 21700 battery holder, supporting a battery of up to 5000mAh(Compatible only with unprotected 21700 battery up to 70.3 mm in length.)

Power Input

  • Powered through the USB-C socket, eliminating the need to change your power adapter

Enhanced Power Management

  • Seamless power switching between backup power and the power adapter
  • On-board push button performs the same actions as the Pi's power button
  • Automatically cuts off power when the Pi 5 is shut down
  • On-board LED indicates power status and Pi 5 detection
  • AC power loss and power adapter failure detection via GPIO
  • Auto power-on when power is applied or restored
  • Automatic safe shutdown when battery voltage is low (programmable)
  • Ultra-low standby power consumption to maximize battery life
  • Advanced system power-path management to minimize frequent charging and discharging of batteries

M.2 M key NVMe socket

  • Supports high-capacity M.2 NVMe solid-state drives up to 4TB
  • Accommodates various M.2 NVMe SSD form factors, including 2280, 2242, and 2230
  • Supports operating system booting from your SSD
  • Offers fast data transfer speeds with PCIe 2.0 5Gbps / PCIe 3.0 8Gbps
  • Does not compromise cooling performance and is fully compatible with the official active cooler
  • Features a blue LED indicator that displays power and drive status
  • High-efficiency converter delivers 3.5A to your SSD
Spec

Power input: 5Vdc 5A via USB-C (Input current below 5A may cause improper operation.)

UPS output: 5.1V ±5% Max 5A

Battery charging current: 1.5A

Terminal Battery Voltage: 4.23V

Battery Recharge Threshold: 4.1V

Ports & Connectors:

  • USB-C power in connector x1
  • 1-cell 21700 battery connector x1
  • SSD socket - M.2 KEY-M 67P x1
  • 40-pin extended GPIO header x1

PCB Size: 86.5mm x 84.5mm

Important Notes
  • Do not apply power to your Raspberry Pi 5 via the Type-C USB socket.
  • Compatible with unprotected 21700 battery only (Max. battery length: 70.3 mm).

Technical specification

Power input
  • 5Vdc 5A via USB-C (Input current below 5A may cause improper operation)
UPS output
  • 5.1V ±5% Max 5A
Battery charging current
  • 1.5A
Terminal Battery Voltage
  • 4.23V
Battery Recharge Threshold
  • 4.1V
Ports & Connectors
  • USB-C power in connector x1
  • 1-cell 21700 battery connector x1
  • SSD socket - M.2 KEY-M 67P x1
  • 40-pin extended GPIO header x1
PCB Size
  • 86.5mm x 84.5mm

Packing List

  • 1x X1208 V1.0 UPS + NVMe Board
  • 2x PCIe FFC Cable (40mm length)
  • 1x Pogo Pin (for connecting to the Pi 5 PSW through-hole)
  • 4x M2.5x13.5mm F/F Spacers
  • 1x Screw Kit

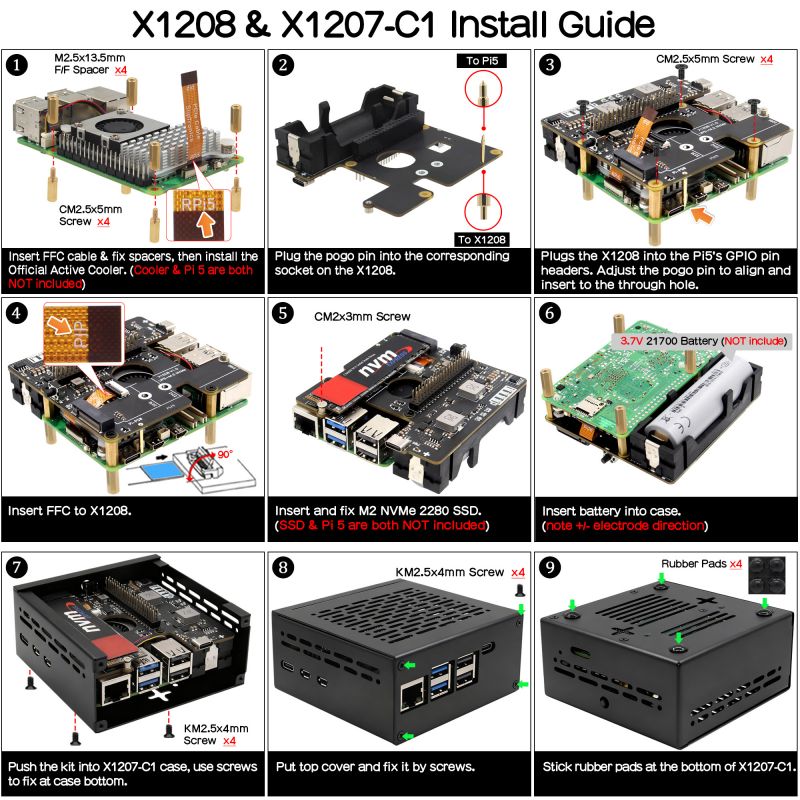

Installation Guide


Installation Video for Raspberry Pi 5+X1208+X1207-C1: https://youtu.be/JVkKT1Gh4xo

Matching Case

The X1207-C1 is a premium metal case specially designed for the Raspberry Pi 5 X1207/X1208 UPS Shield, offering robust protection in a sleek, black aesthetic.

  • Case dimension: 92.8 x 90.8 x 42.8 mm

  • X1207-C1 Accessories

  • X1207-C1

  • X1207-C1

  • X1207-C1

User Manual

FAQ

Q1: Question 1

A: Place the answer here.
