H502

H502 Dimension

H502

H502 Support 30x30mm Fan Installation

H502

H502

H502 with expansion board

Overview

H502 is an ultra-thin one-piece copper heatsink specially designed for Raspberry Pi 5 Model B. CNC-processed copper heatsink with precise cutouts, designed to seamlessly fit the Raspberry Pi 5B motherboard.

Through-hole screw holes allow expansion boards installed on top of the H502 heatsink or on the bottom of the H502 heatsink. H502 also supports 30x30mm cooling fan installation for better heat dissipation.

---

Geekworm Cooler Series:

Picture	Model	Compatible With	Material	Thickness(mm)	Support Fan
	C519	Raspberry Pi Computer Module 5 (CM5)	Aluminum Alloy	15mm	√ support fan installation
	Pi 5 official Active Cooler	Raspberry Pi 5	Aluminum Alloy	10mm	√ with 4-pin 3010 blower fan
	H505	Raspberry Pi 5	Aluminum Alloy	11.6mm	√ with 4-pin 3007 blower fan
	H509	Raspberry Pi 5	Aluminum Alloy	15mm	× don't support fan installation
	Argon THRML 30-AC	Raspberry Pi 5	Aluminum Alloy	9.6mm	√ with 4-pin 3007 blower fan
	H501	Raspberry Pi 5	Aluminum Alloy	9.5mm	√ with 4-pin 3007 blower fan
	H502	Raspberry Pi 5	Copper	4mm	× support 30x30 fan installation
	P165-B	Raspberry Pi 4	Aluminum Alloy	11mm	× support 30x30 fan installation
	P165-A	Raspberry Pi 4	Aluminum Alloy	7mm	× support 25x25 fan installation
	H402	Raspberry Pi 4	Copper	4mm	× don't support fan installation
	C235	Raspberry Pi Computer Module 4 (CM4)	Aluminum Alloy	12mm	× support 30x30 fan installation
	C296	Raspberry Pi Zero 2 W	Aluminum Alloy	10mm	× don't support fan installation

Features

• Model: H502
• Material: copper
• heartsink Thickness: 4mm / 0.16inch
• Heatsink Net Weight: 63g / 0.14lb
• Through-hole screw holes allow expansion boards installed on the top of heatsink or on the bottom of raspberry pi
• Supports 30x30mm fan installation for active cooling
• Comes with thermal pads for both CPU,RAM,USB chip and network module of Raspberry Pi 5
• Includes an acrylic plate for installing under the Raspberry Pi 5 to provide protection

Packing List

• 1 x 4mm thickness copper heatsink
• 1 x Acrylic Plate
• 1x Screws Pack Accessories

Installation Guide

Add your comment

Geekworm Wiki welcomes all comments. If you do not want to be anonymous, register or log in. It is free.

Sort by date Sort by score

Enable comment auto-refresher

You are ignoring the author of this comment

Show comment | Manage ignore list

Anonymous user #2

10 days ago

Score 0

I will comment it is a very beautiful finish that looks polished and/or electroplated with pure copper, it is a near mirror finish. It is both functional and beautiful. I've encased it fully in acrylic with a different housing.

Permalink | Reply

You are ignoring the author of this comment

Show comment | Manage ignore list

Lisa

9 days ago

Score 0

Thank you！

Permalink

You are ignoring the author of this comment

Show comment | Manage ignore list

Anonymous user #2

10 days ago

Score 0

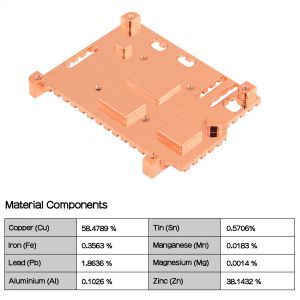

the EU RoHS “6(c)” exemption allows up to 4% lead in copper alloys (brass) by weight. - Copper Development Association

How children actually get exposed to lead:

The big risk route is ingestion (hand‑to‑mouth or mouthing an object). This is why California targeted brass keys—kids put them in their mouths and measurable lead transfers from handling/mouthing.

Permalink | Reply

You are ignoring the author of this comment

Show comment | Manage ignore list

Lisa

9 days ago

Score 0

Yes，please keep children away from metal products.

Permalink

You are ignoring the author of this comment

Show comment | Manage ignore list

Anonymous user #2

10 days ago

Score 0

Alright, I figured it out:

Mechanical strength – Pure copper is very soft and malleable. Under repeated tightening, it would deform or strip. Brass (copper + zinc, sometimes with a trace of lead) is much harder and keeps threads intact. That’s important for standoffs which get screwed/unscrewed.

Corrosion resistance – Pure copper oxidizes rapidly (green patina). Brass resists tarnish better and maintains good contact over years without needing surface coatings.

Machinability – Adding zinc (and a small amount of lead in some brass alloys) makes the material much easier to machine precisely, especially for threaded parts. That reduces cost and improves quality control.

Cost – Brass is cheaper than using high-purity copper for mechanical parts. Copper is usually reserved for high-current traces or heat conduction, not threaded standoffs.

So the alloying with zinc (to form brass) and sometimes lead (to improve machinability and lubricity) is exactly to balance strength, durability, corrosion resistance, and manufacturing cost. Pure copper would simply be too soft and impractical for screws and standoffs.

Basically don't grind or sand it, don't let your kid swallow this entire heatsink. Its not a risk. Peace n love homies.

Permalink | Reply

You are ignoring the author of this comment

Show comment | Manage ignore list

Lisa

9 days ago

Score 0

Hello,Thank you for the feedback. I think your explanation also addresses the doubts of many users; usually, they are unaware of the production process of metal radiators.It would be very helpful for other users if you included this section in the product review as well.

Permalink

You are ignoring the author of this comment

Show comment | Manage ignore list

Anonymous user #2

10 days ago

Score 0

Why would you put lead in this?

Permalink | Reply

You are ignoring the author of this comment

Show comment | Manage ignore list

Anonymous user #1

13 months ago

Score 0

What size of shim could be used to replace the thermal pad for the CPU?

Permalink | Reply
