Overview

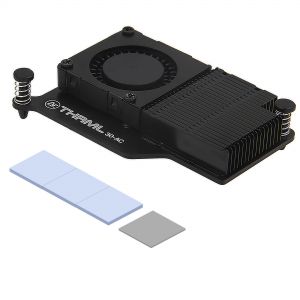

Argon THRML Active Cooler fits on top of the Raspberry Pi 5 to keep it cool while keeping the small form factor
Maximize heat dissipation away from the Raspberry Pi 5 with the large aluminum heatsink
Tunnel Type Radiator heatsink design to maximize synergy with the active cooling from the 30mm PWM blower fan
Integrated 30mm PWM blower fan helps cool down the Raspberry Pi 5 faster

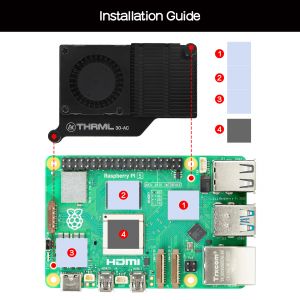

Quick snap on and push pins for easy mounting on Raspberry Pi 5
Geekworm Cooler Series:
| Picture | Model | Compatible With | Material | Thickness(mm) | Support Fan |
|---|---|---|---|---|---|
 |
Pi 5 official Active Cooler | Raspberry Pi 5 | Aluminum Alloy | 10mm | √ with 4-pin 3010 blower fan |
 |
H505 | Raspberry Pi 5 | Aluminum Alloy | 11.6mm | √ with 4-pin 3007 blower fan |
 |
H509 | Raspberry Pi 5 | Aluminum Alloy | 15mm | × don't support fan installation |
 |
Argon THRML 30-AC | Raspberry Pi 5 | Aluminum Alloy | 9.6mm | √ with 4-pin 3007 blower fan |
 |
H501 | Raspberry Pi 5 | Aluminum Alloy | 9.5mm | √ with 4-pin 3007 blower fan |
 |
H502 | Raspberry Pi 5 | Copper | 4mm | × support 30x30 fan installation |
 |
P165-B | Raspberry Pi 4 | Aluminum Alloy | 11mm | × support 30x30 fan installation |
 |
P165-A | Raspberry Pi 4 | Aluminum Alloy | 7mm | × support 25x25 fan installation |
 |
H402 | Raspberry Pi 4 | Copper | 4mm | × don't support fan installation |
 |
C235 | Raspberry Pi Computer Module 4 (CM4) | Aluminum Alloy | 12mm | × support 30x30 fan installation |
 |
C296 | Raspberry Pi Zero 2 W | Aluminum Alloy | 10mm | × don't support fan installation |
Features
- Input voltage: 5V DC supplied via 4-pin fan header on Raspberry Pi 5
- Fan speed control: Pulse width modulation control with tachometer
- Maximum airflow: 1.09 CFM
- Maximum fan speed: 8000 RPM +/- 15%
- Product material: Aluminum
Packing List
- 1 x Argon THRML active cooler for Raspberry Pi 5
- 1 x accessory pack
