C519: Difference between revisions
Replace <comments/> with <comment-streams /> |
|||
| (16 intermediate revisions by 5 users not shown) | |||
| Line 1: | Line 1: | ||
{{GD Template Impl}} | {{GD Template Impl}} | ||

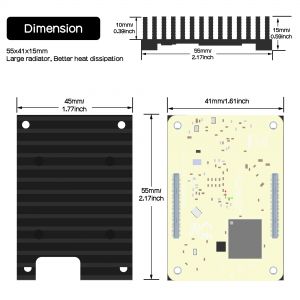

[[File: C519-IMG-9116-size.jpg|thumb|right|C519 Raspberry Pi CM5 Heatsink]] | [[File: C519-V1.1-IMG-9116-size.jpg|thumb|right|C519 V1.1 Raspberry Pi CM5 Heatsink]] | ||
[[File: C519-IMG-9116-size.jpg|thumb|right|C519 V1.0 Raspberry Pi CM5 Heatsink]] | |||
[[File:C519-IMG-9781.jpg|thumb|right|C519]] | |||
[[File:C519-IMG-9783.jpg|thumb|right|C519]] | |||
[[File: C519-IMG-9111-Fan.jpg|thumb|right|C519 Raspberry Pi CM5 Heatsink]] | [[File: C519-IMG-9111-Fan.jpg|thumb|right|C519 Raspberry Pi CM5 Heatsink]] | ||
[[File: C519-IMG-9111.jpg|thumb|right|C519 Raspberry Pi CM5 Heatsink]] | [[File: C519-IMG-9111.jpg|thumb|right|C519 Raspberry Pi CM5 Heatsink]] | ||
| Line 14: | Line 17: | ||
It is an efficient, silent and easy-to-install cooling solution for users seeking stability and flexibility. | It is an efficient, silent and easy-to-install cooling solution for users seeking stability and flexibility. | ||
<span class="tb_red">Update:</span> | |||
To make installation easier, '''the width of the C519 was changed from 45mm to 41mm in August 2025''', while other specifications remained unchanged. Currently, there are two versions of the C519 available: the '''C519 V1.0''', which is a '''45mm''' wide cooler, and the '''C519 V1.1''', which is a '''41mm''' wide cooler. | |||
[[File:C519-IMG-8756-compare.jpg|700px|none|C519 V1.1 VS C519 V1.0]] | |||
==Test Data== | ==Test Data== | ||
*'''Test Method''': We conducted a quad-core stress test on the C519 at room temperature of 23.2 degrees Celsius. Test script reference to [https://github.com/geekworm-com/pi-cpu-stress Geekworm test script] | *'''Test Method''': We conducted a quad-core stress test on the C519 at room temperature of 23.2 degrees Celsius. Test script reference to [https://github.com/geekworm-com/pi-cpu-stress Geekworm test script] | ||
*'''Test result''' reference to: [[File:Cpu temp C519. | *'''Test result''' reference to: [[File:Cpu temp C519.txt|none]] | ||
*'''Test Conclusion''': In a '''ventilated environment''', C519 can meet the heat dissipation requirements of CM5 under heavy load. | *'''Test Conclusion''': In a '''ventilated environment''', C519 can meet the heat dissipation requirements of CM5 under heavy load. | ||
<!--[[File: C519-IMG-9127-Test-Data-1.jpg|700px]]--> | <!--[[File: C519-IMG-9127-Test-Data-1.jpg|700px]]--> | ||
[[File: C519-IMG-9120-Cooling-Fins.jpg|700px]] | [[File: C519-IMG-9120-Cooling-Fins.jpg|700px]] | ||
{{Geekworm Cooler}} | |||
==Features== | ==Features== | ||
| Line 27: | Line 38: | ||
* '''Wave-shaped Cooling Fins:''' 14pcs 10mm thickness wave-shaped cooling fins, maximizes heat dissipation for stable and reliable performance. | * '''Wave-shaped Cooling Fins:''' 14pcs 10mm thickness wave-shaped cooling fins, maximizes heat dissipation for stable and reliable performance. | ||
* '''Fanless Design:''' Ensures silent, noise-free performance without fan life issues | * '''Fanless Design:''' Ensures silent, noise-free performance without fan life issues | ||
* '''Support Fan Expansion:''' | * '''Support Fan Expansion:''' Reserved fan mounting holes allow optional fan installation for enhanced heat dissipation. Supports a 30×30mm cooling fan (compatible with 3010 or 3007 fans). | ||
* '''Wireless Cutout design:''' Reserved cutouts to reduce WiFi interference and facilitate antenna connection. | * '''Wireless Cutout design:''' Reserved cutouts to reduce WiFi interference and facilitate antenna connection. | ||
* '''Premium Build:''' Constructed from durable and thermally conductive aluminum. | * '''Premium Build:''' Constructed from durable and thermally conductive aluminum. | ||
| Line 33: | Line 44: | ||
* '''Compact Design:''' Space-efficient, without blocking any essential components | * '''Compact Design:''' Space-efficient, without blocking any essential components | ||
* '''Wide Application:''' Compatble with official Raspberry Pi IO board, Geekworm [[X1500]] / [[X1501]] IO Carrier Board | * '''Wide Application:''' Compatble with official Raspberry Pi IO board, Geekworm [[X1500]] / [[X1501]] IO Carrier Board | ||
* '''Dimension:''' 45x55x15 mm / 1.77x2.17x0.59 inch | * '''C519 V1.0 Dimension:''' 45x55x15 mm / 1.77x2.17x0.59 inch, '''Net weight:''' 42g/ 1.48 oz | ||
* '''Net weight:''' | * '''C519 V1.1 Dimension:''' 41x55x15 mm / 1.61x2.17x0.59 inch, '''Net weight:''' 37g/ 1.31 oz | ||
==Packing List== | ==Packing List== | ||
| Line 55: | Line 66: | ||
<div class="toccolours mw-collapsible mw-collapsed"> | <div class="toccolours mw-collapsible mw-collapsed"> | ||
<div style="font-weight:bold;line-height:1.0;"> | <div style="font-weight:bold;line-height:1.0;"> | ||
Q1:Does the C519 heatsink fit all CM5 IO boards, including third-party ones like the Waveshare CM5 POE IO Board? | Q1:Does the C519 heatsink fit all CM5 IO boards, including third-party ones like the Waveshare CM5 POE IO Board/CM5-IO-BASE-A? | ||
</div> | </div> | ||
<div class="mw-collapsible-content"> | <div class="mw-collapsible-content"> | ||
A: The C519 heatsink fits the [https://www.raspberrypi.com/products/compute-module-5-io-board/ official Raspberry Pi CM5 IO board] without issues. However, compatibility with third-party IO boards may vary. For example, on the Waveshare CM5 POE IO Board, the heatsink may interfere with the POE circuit's square inductor. In such cases, slight modification (e.g., trimming a small notch with a Dremel) might be needed to achieve proper fitment. Please check the layout of your IO board and C519 size before installation. | A: The C519 heatsink fits the [https://www.raspberrypi.com/products/compute-module-5-io-board/ official Raspberry Pi CM5 IO board] without issues. However, compatibility with third-party IO boards may vary. For example, on the Waveshare CM5 POE IO Board, the heatsink may interfere with the POE circuit's square inductor. In such cases, slight modification (e.g., trimming a small notch with a Dremel) might be needed to achieve proper fitment. Also not support Waveshare CM5-IO-BASE-A. Please check the layout of your IO board and C519 size before installation. | ||
</div> | </div> | ||
</div> | </div> | ||
| Line 65: | Line 76: | ||
