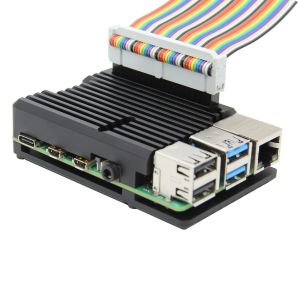

Armor case for Raspberry pi 4 model B
P122 View
Armor case with dual fan for Raspberry pi 4 model B
Armor case for Raspberry pi 4 model B
Armor case for Raspberry pi 4 model B

Overview

This is an armor aluminum alloy case designed for the Raspberry Pi 4 computer model b, so this armor case is only fit to raspberry pi 4 model b. please refer to P122-B if you want armor case for raspberry pi 3 model b+ / 3b;

There are two version: without fan version and with dual fan version to meet different needs.

There are only black case are in stock, and we will considing other color such Gray and Silver (Natural aluminum) colors soon.

Please contact us if you want bulk purchase.

Note: This armor case is only fit to raspberry pi 4 model b;

Refer to RPi4-Cases to see more raspberry pi 4 case.

Features

  • Model: P122
  • Ultra-thin design
  • Easy to install
  • Fast Heat dissipation
  • Smooth and straight aluminum material
  • All ports and slots of the case can match with Raspberry Pi 4 Computer Model B perfectly
  • Open case design, you don't need to worry it will effect wifi signal any more
  • Reinforced aluminum material, lightweight and durable, long-lasting stainless
  • With 2 pieces of 2*20 female header to facilitate the use of GPIO pin header.
  • We use 3 picese silicon cooling pad (the thickness is only 0.5mm) to touch the shell body to dissipate heat. You can use the CPU grease to replace the silicon cooling pad to get better heat dissipation.

Packing List

  • 1 x armor case for raspberry pi 4 model b
  • 2 x 2*20 female header (Convenient for you to use GPIO pin headers)

Assembly instructions

Assembly instructions

Document

Installation video for Armor case without fan: https://youtu.be/tWb03sZk4lI


Add your comment
Geekworm Wiki welcomes all comments. If you do not want to be anonymous, register or log in. It is free.


Anonymous user #15

4 months ago
Score 0++
What is the height of the top heatsink piece? And bottom heatsink piece? I assume I could use either/or?

Anonymous user #13

4 months ago
Score 0++

after a quick check(don't wanna disassemble it), the total height with rpi installed is 25.54mm(w/ 0.02mm precision)

approximately, the lower plate is 8mm, so i guess the upper plate is 17.54mm

Anonymous user #13

4 months ago
Score 0++
16.54 i mean(rpi is 1mm height)

Anonymous user #13

5 months ago
Score 0++

Oh and, is it ok if i use GPIO to control the fan so i can make it active cooling?

wondering if it's possible. I'm currently thinking use GPIO direct control, use a transistor, or a relay+transistor

Walker

5 months ago
Score 0++
Hello, this P122 version with fan is to control the fan via GPIO.

Walker

5 months ago
Score 0++

Please note the connection of the fan

How to connect

Anonymous user #14

5 months ago
Score 0++

i see. I understand it as "the speed is controlled by voltage". so i think maybe i can make it active cooling with auto fan speed control with script that controls GPIO which can control the voltage in a range of 0V、3.3V~(/)5V?

just a assumption. i'm wondering if it's prohibited to do so.

Anonymous user #14

5 months ago
Score 0++

for example, i can make a script that reads the temperature of the processor or other chips. if the temperature is over 40°C, the fan activates by providing 3.3V, and as the temperature rises, the voltage rises to 5V max as well when it reaches 60°C

(or if dynamic voltage control is not possible, i can replace the temperature rising part to 3.3V static)

Walker

5 months ago
Score 0++
Hi, we understand what you mean, you are talking about programming through scripts to realize the control of fan speed through GPIOs, but we haven't tested it so far.

Anonymous user #13

5 months ago
Score 0++
hi, i also own this case. i'm wondering if, my thermal tape happens to have one side double-side-taped, should i attach the glued part to the shield or the chip? thx!

Walker

5 months ago
Score 0++
Hi, this doesn't really matter much, shield or the chip are both viable

Anonymous user #12

12 months ago
Score 0++
Hi, I'm a owner of this case, and one year later, fans started to do some annoying noise, and I need to replace them. Where I can find others fans with the same specs?

Walker

12 months ago
Score 0++
Hello, the size of this fan is 25*25*7mm, our store currently does not sell fans individually

Anonymous user #11

31 months ago
Score 0++
is the case painted or anodized?

Lisa

31 months ago
Score 0++
Hi,It's not anodized, if you want a anodized case,please refer N300

Anonymous user #10

44 months ago
Score 0++
How long can fans (on dual-fan version) run without stopping?

Anonymous user #9

51 months ago
Score 0++
SoC pillar is too tall for 1mm thermopad. Either cut it down 0.5mm or provide 0.5mm thermopads. Had to trim the pad in half otherwise rPi board was bowing.

Cindy

51 months ago
Score 0++
Hi, sorry, it must be related with some invidual thermal pads, you can thermal grease to replace it to get better dissaption.

Anonymous user #8

51 months ago
Score 0++

I need the kit of screw. Can somebody tell me what kind of screw did I need?

Thank you.

Cindy

51 months ago
Score 0++
Hi friend,please use M2.5x10mm screws.

Anonymous user #7

51 months ago
Score 0++

Hi guys, what are the dimensions of the fans?

Thank you!

Cindy

51 months ago
Score 0++

Hi,

The two coolig fan size is 25x25x8mm.

Anonymous user #6

53 months ago
Score 0++
What is the total height of Raspberry Pi with case? 23mm?

Admin

51 months ago
Score 0++

Hi friend, It is about 1.6cm/0.62inch.The height of Case without fan and case with fan are the same.

Regards,

Geekworm Team

Anonymous user #5

59 months ago
Score 0++
In the dual fan version, are the fans always on? Or they turn on on-demand when the temp rises?

Admin

51 months ago
Score 0++

Hi friend, The fan is always on if it is connected, please try to contact the fan to 3.3V and GND for quiet cooling mode if the temperate is not high.

Regards,

Geekworm Team

Anonymous user #3

59 months ago
Score 0++

I do have a design improvement suggestion. One disadvantage of running the armor case is there is no ability to mount any hats to the top of the case even though with the Pi 4 GPIO extensions are provided.

The improvement would be putting mounting screw holes on the top of the case to allow a hat to be mounted but mounted high enough to allow for air flow on the heat sink, likely with a extension installed.

Anonymous user #3

59 months ago
Score 0++

Love the armor case! I modified mine, shaved paint off the contacts, shaved the legs until the cpu contact came in contact with the pad, put thermal compound on the cpu and the pads on the contacts of the 2 other chips. Without a fan I'm seeing 42 to 45C with light use, 65 under load.

With a fan I'm seeing 28 to 29C with light use and 42 under load.

Anonymous user #3

59 months ago
Score 0++

I take that back, I miss typed. 34C under load with a fan but I'm also using a ridiculously fast 12v fan off my 12v power supply that feeds my 12 to 5v regulator. I plan to swap this out later for a Noctua 5v fan with a mosfet to be controlled by the Pi.

For fan controls for the Pi do a search for Pi speed control.

Anonymous user #4

59 months ago
Score 0++
how did you connect the fan ? mines don't seem to want to start..

Anonymous user #4

59 months ago
Score 0++
nevermind, found this http://www.r...IMG-5254.jpg

Anonymous user #2

59 months ago
Score 0++
Bottom piece doesn't need anymore RAM cooling, as RAM is upper side, for case with fan.

Anonymous user #1

59 months ago
Score 0++
I want to check if the SD card can be covered by the case. As it put the card in a much safer place then.

Anonymous user #3

59 months ago
Score 0++
Only the very edge of the SD card sticks out just as it would without the case.
