You are correct. Dual link 74.5MHz is valid for 1080P@60Hz.
AV_Mute 9: lvds unlock,==========Set AV Mute============
AV_Mute 9: lvds unlock,==========Set AV Mute============
AV_Mute 9: lvds unlock,==========Set AV Mute============
AV_Mute 9: lvds unlock,==========Set AV Mute============
This fault is caused by two reasons.

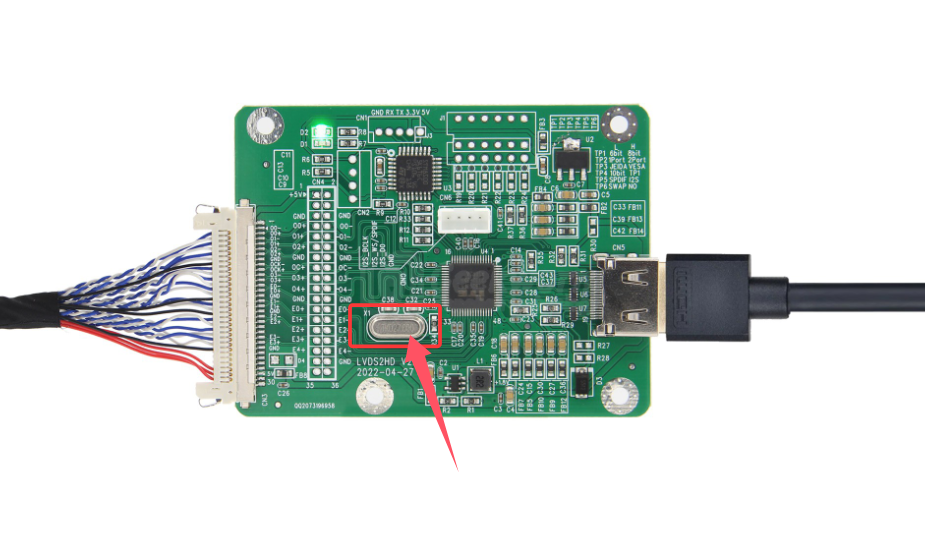

1. Poor crystal contact in the LVDS2HD. See the diagram below:
LVDS2HD
2. If the LVDS2HD does not receive LVDS information, the above situation will occur also. You can use an oscilloscope to check if the LVDS2HD is receiving the LVDS signal.
