Overview
This product is RGB888 to HDMI adapter board, using 15*2 30P 2.0mm double-row pin input, can convert the RGB signal of 7/9/10 inch industrial control screen to standard HDMI output. It can be applied to industrial equipment maintenance, control panel modification, DIY display expansion related use scenarios.
Note:
- This board does not have a scaling function, and the output HDMI resolution is the same as the input RGB signal resolution, so for non-standard HDMI resolutions, the monitor connected to the back end may not support it!

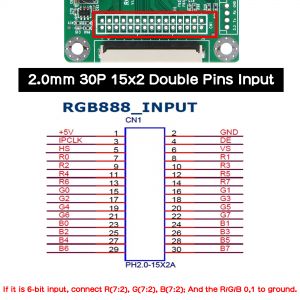

- If it is 6-bit input, connect R[7:2], G[7:2], B[7:2]; and R/G/B 0,1 to ground
Features
- Precise signal conversion: Stable conversion of RGB888 digital signals to standard HDMI output.

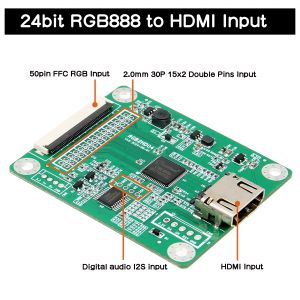

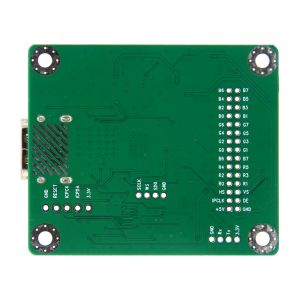

- Dual Mode Input Connector: 30P Pin connector (15x2 2.0mm)(15x2 2.0mm connectors to be prepared and soldered by yourself): Supports RGB888 (24bit) and 6bit input. 50PIN FFC Input Connector: Supports RGB888 (24bit).

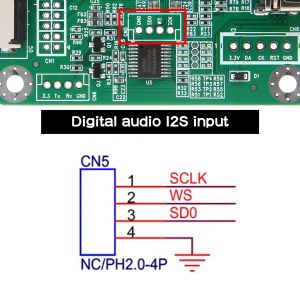

- Audio Integration: Provides digital audio I2S inputs to support simultaneous transmission of audio signals to HDMI outputs.
- Dimensional clarity: Provides accurate mechanical mounting dimensions for easy integration into your equipment enclosure.
Packing List
- 1 x RGB888 to HDMI adapter Board
- 1 x 50PIN FFC cable (length 5 cm)
