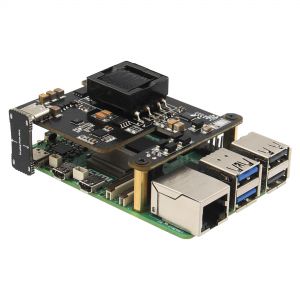

Pi5-POE-PD-A Front View

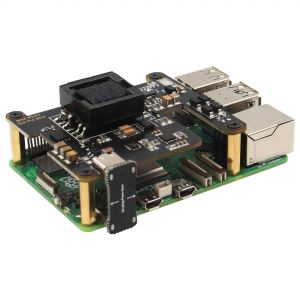

Pi5-POE-PD-A Rear View

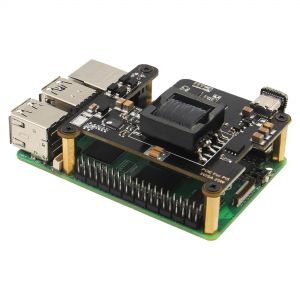

Pi5-POE-PD-A

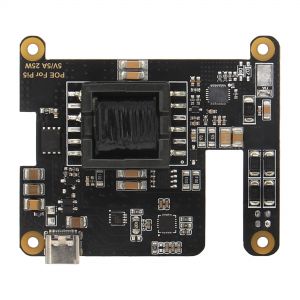

Pi5-POE-PD-A

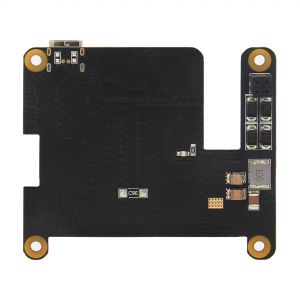

Pi5-POE-PD-A


Overview

The Pi 5 POE-PD-A module is an advanced expansion board designed to provide Power Over Ethernet (POE) capabilities to the Raspberry Pi 5. Compliant with IEEE 802.3af/at standards, this module integrates Power Delivery (PD) protocol management, ensuring a reliable and high-current power supply.

This POE module is an ideal solution for users needing reliable, high-current power for demanding Raspberry Pi 5 projects, ensuring both stable operation and ease of use.

Features

  • POE Standards Support: Adheres to IEEE 802.3af/at, enabling efficient power delivery over Ethernet.
  • Integrated PD Protocol IC: Manages power negotiation to avoid startup warnings and ensure stable operation.
  • Type-C Power Supply: Offers a robust 5V 4.5A output from a high-voltage 37V~57V input, accommodating higher power demands.
  • Plug and play: No additional configuration is required, just plug in the USB-C and POE network port and you can use it
  • Non-Interference with GPIO: Maintains free use of the Raspberry Pi 40-pin GPIO header for additional peripherals.
  • Cooling Solution Compatibility: Supports the installation of the official Raspberry Pi Active Cooler as well as third-party Active Cooler for enhanced thermal management.

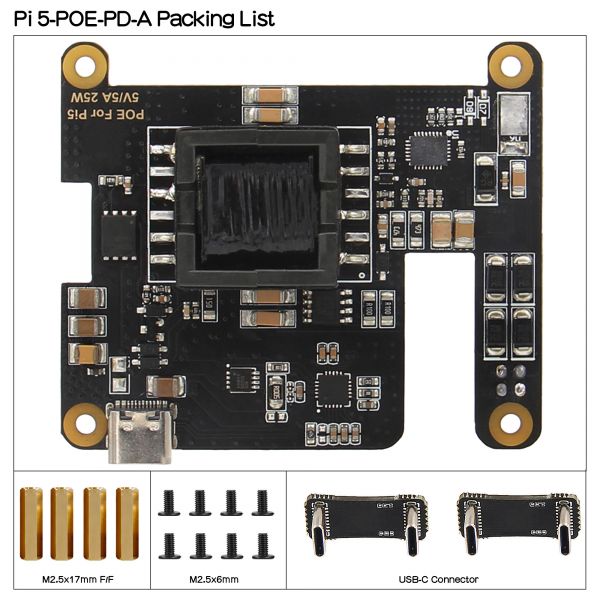

Packing List

  • 1 x POE-PD-A HAT
  • 2 x USB-C Connector (1piece is for backup)
  • 1 x Screw Pack
