GPIO Stacking Header Kit
Contents
Overview
This all-in-one kit provides the essential 2.54mm pitch GPIO headers for prototyping and expanding your Raspberry Pi projects across the entire model series, from the latest Raspberry Pi 5 to the compact Pi Zero. All components are neatly organized in a transparent storage box for convenience.
Features

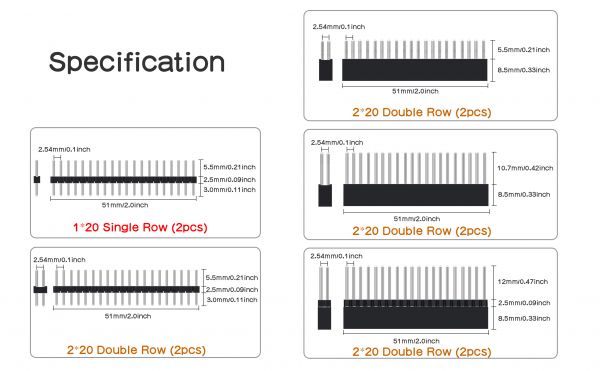

Packing List
- 2x20 Female Header (Long Pin, 12mm) *2: Ideal for creating secure, deep connections or when additional clearance is needed below the board.
- 2x20 Female Header (Medium Pin, 10.7mm) *2: Suitable for standard stacking applications and attaching most HATs (Hardware Attached on Top).
- 2x20 Female Header (Short Pin, 5.5mm) *2: Perfect for low-profile connections where space is constrained.
- 2x20 Male Pin Header *2: Specifically for soldering onto Raspberry Pi Zero / Zero W / WH models to provide GPIO access.
User Manual
- Hardware Installation:
- How to make it work:
FAQ
Q1: Question 1
A: Place the answer here.
