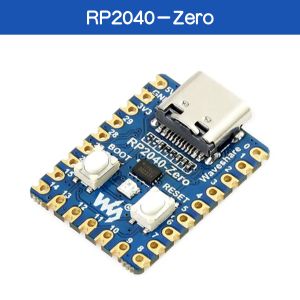

[[File:RP2040-Zero-11.jpg|thumb|RP2040-Zero RP2040-Zero | [[File:RP2040-Zero-11.jpg|thumb|RP2040-Zero RP2040-Zero Bare Module]] | ||

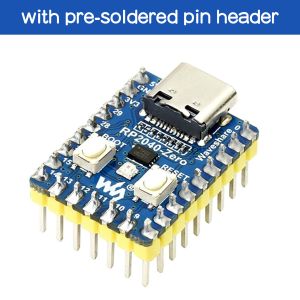

[[File:RP2040-Zero-12.jpg|thumb|RP2040-Zero | [[File:RP2040-Zero-12.jpg|thumb|RP2040-Zero Pre-Soldered Pin Header Version]] | ||

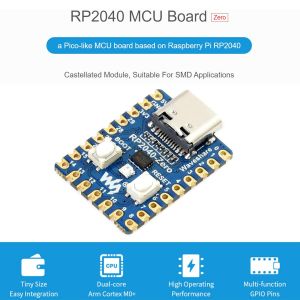

[[File:RP2040-Zero-04.jpg|thumb|RP2040-Zero]] | [[File:RP2040-Zero-04.jpg|thumb|RP2040-Zero]] | ||

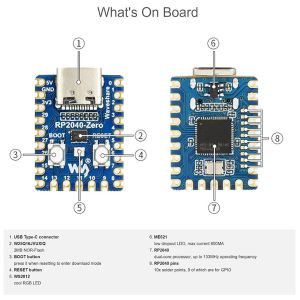

[[File:RP2040-Zero-07.jpg|thumb|RP2040-Zero Interface]] | [[File:RP2040-Zero-07.jpg|thumb|RP2040-Zero Interface]] | ||
Revision as of 14:08, 3 August 2026
Overview
RP2040-Zero is a tiny, low-cost Pico-compatible microcontroller module based on Raspberry Pi RP2040 dual-core chip. Its castellated edge pads allow direct SMD surface mounting for mass production integration.
Technical Specification
| Main Controller | RP2040 dual-core Arm Cortex-M0+, max 133MHz clock |
| Memory | 264KB SRAM, 2MB onboard NOR Flash (W25Q16JVUXIQ) |
| Power Supply | ME621 LDO regulator, max 800mA output; support 5V USB-C power input.
Independent power pins are reserved on board: 5V power input, GND ground, 3.3V power output for external sensor power supply. |
| IO Resources | 29 multi-function GPIO pins, integrated 3-channel ADC, hardware I2C/SPI/UART/PIO peripherals.
All GPIO pads are gold-plated, compatible with both manual soldering and SMT mass production. |
| Onboard Peripherals | USB-C port, BOOT download button, RESET button, WS2812 programmable RGB LED |
| Dimension | 18.00mm × 23.50mm |
Supported Development Environment
| Programming Language | C/C++ SDK, MicroPython |
| Compatible IDE | VS Code, Arduino IDE, Thonny Python Editor |
| Compatible IDE | VS Code, Arduino IDE, Thonny Python Editor |
Pin Definition
Equipped with 29 independently configurable multiplexed GPIO pins. Each single pin can be assigned as digital GPIO, PWM output, ADC analog input, or hardware communication interface (SPI/I2C/UART). Complete pin function allocation details are available in the official pinout diagram.
Use Manual
Dimensions
FAQ
