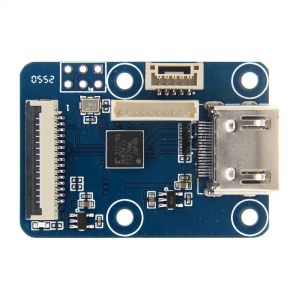

Overview
The Raspberry Pi HDMI to CSI-2 Adapter Board is a high-performance video capture module based on the Toshiba TC358743XBG chip. It allows you to convert standard HDMI audio and video signals into Raspberry Pi-compatible CSI-2 camera signals and I2S digital audio.
This module functions exactly like a standard Raspberry Pi CSI camera, making it a perfect solution for PiKVM, live streaming, industrial imaging, and camera systems with HDMI output. It is fully compatible with the entire Raspberry Pi series.
Features
- Model: LCKVM HDMI to CSI
- Broad Compatibility: Compatible with Raspberry Pi 5/4B/3B+/3B/Zero/Zero W/Zero 2W/CM4/CM3
- Professional Capture Performance: Powered by the dedicated TC358743XBG chip to ensure stable, low-latency audio and video conversion.
- 1080P @ 60Hz High-Definition Support: Capture crystal-clear video with support for resolutions up to 1080P at 60Hz.
- High-Fidelity Audio: Supports I2S digital audio output, enabling high-quality sound capture alongside the video feed.
- Bus-Powered Simplicity: Designed to draw 3.3V power directly from the Raspberry Pi's CSI camera interface, eliminating the need for external power adapters.
- Real-Time Status Monitoring: The onboard Power LED provides immediate visual confirmation by lighting up when the module is correctly powered through the Raspberry Pi.
Technical Specifications
- Core Chip: Toshiba TC358743XBG
- Input Interface: Standard HDMI (Audio & Video)
- Output Interface: CSI-2 (Video) & I2S (Audio)
- Power Input: 3.3V via Raspberry Pi CSI Interface
- Video Output Connection: FPC 1.0mm Bottom Contact

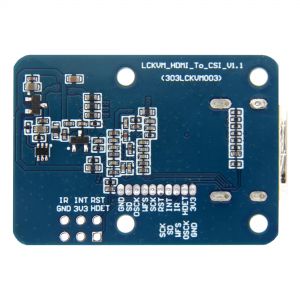

- Auxiliary Interfaces:

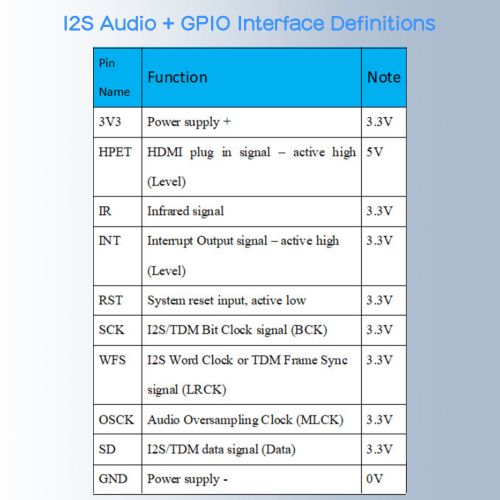

- MX1.25-10P Socket: I2S Audio + GPIO Interface
- GH1.25-5P Snap-on Socket: I2S Audio Interface
- 2.54mm-2*3P Pin Header: GPIO Interface

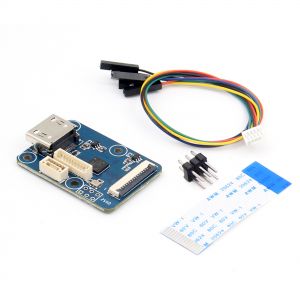

Packing List
- 1x Hdmi to CSI module
- 1x 5cm 15Pin Reverse 1.0mm Pitch FPC Cable (for Pi 4B/3B/3B+/3A)
- 1x 3P Double-Row Pin Header
- 1x 20cm GH1.25 to 2.54-4Pin DuPont Wire
User Manual
Hardware Guide
Software Guide
- For Raspberry Pi 5, please refer to RPi5_hdmi_in_card
- For Raspberry Pi 4B, 3B+, 3B, Zero, and Zero 2W,please refer to C779-Software or Raspberry pi official forum post
FAQ
Q1: Question 1
A: Place the answer here.
