Overview
H509 Raspberry Pi 5 aluminum alloy Passive Cooler offers efficient and noiseless cooling. Its wave-shaped fins increase cooling area while its 6W thermal pad ensures optimal heat transfer. The easy installation and compatibility with stress tests make it a reliable addition to your Raspberry Pi 5 setup.
Note:
H509 supports custom silk-screen print, please contact info@geekworm.com if you need a customised.
Geekworm Cooler Series:
| Picture | Model | Compatible With | Material | Thickness(mm) | Support Fan | |
|---|---|---|---|---|---|---|
 |
C519 | Raspberry Pi Computer Module 5 (CM5) | Aluminum Alloy | 15mm | √ support fan installation | |
 |
Pi 5 official Active Cooler | Raspberry Pi 5 | Aluminum Alloy | 10mm | √ with 4-pin 3007 blower fan | |
 |
H505 | Raspberry Pi 5 | Aluminum Alloy | Net Weight: 39g | √ with 4-pin 3007 blower fan | |
|
H509 | Raspberry Pi 5 | Aluminum Alloy | 15mm | × don't support fan installation | |
 |
H510 | Raspberry Pi 5 | Brass | 10mm / Net Weight: 55g | √ with 4-pin 3007 blower fan | |
 |
Argon THRML 30-AC | Raspberry Pi 5 | Aluminum Alloy | 9.6mm | √ with 4-pin 3007 blower fan | |
 |
H501 | Raspberry Pi 5 | Aluminum Alloy | 9.5mm | √ with 4-pin 3007 blower fan | |
 |
H502 | Raspberry Pi 5 | Brass | 4mm | × support 30x30 fan installation | |
 |
P165-B | Raspberry Pi 4 | Aluminum Alloy | 11mm | × support 30x30 fan installation | |
 |
P165-A | Raspberry Pi 4 | Aluminum Alloy |
7mm/8mm (Version updated; 2 versions available, 8mm (new), compatibility unaffected) |
× support 25x25 fan installation | |
 |
H402 | Raspberry Pi 4 | Brass | 4mm | × don't support fan installation | |
 |
C235 | Raspberry Pi Computer Module 4 (CM4) | Aluminum Alloy | 12mm | × support 30x30 fan installation | |
 |
C296 | Raspberry Pi Zero 2 W | Aluminum Alloy | 10mm | × don't support fan installation |
Features
- Model: H509
- Compatible with: Raspberry Pi 5 16GB/8GB/4GB/2GB
- Material: Aluminium alloy
- Fanless design: No noise, no fan life issues
- Wave-shaped cooling fins: Increase the heat dissipation area, thus improving the heat dissipation capacity
- Simple installation: Use M2.5x6mm nylon screws to fix from the bottom, easy to install and remove
- Good heat dissipation: The stress test can meet the full-load stress test of the Raspberry Pi 5 3-core (room temperature 22 degrees, test time 20 minutes), which is a supplement to the active radiator and can meet most usage scenarios
- Better thermal pad: Thermal conductivity of the thermal pad is 6W
- Net weight: 44g
- Dimension: 63.5x42x15 mm / 2.5x1.65x0.59 inch
- Compatibility Notice: The H509 is not compatible with the following models: X1000, X1003, X1207, X1208, X1209, M903, and X1300-A2.
Packing List
- 1x H509 Aluminum Heatsink
- 2x M2.5x6 mm Nylon Screw
- 2x M2.5x5mm Metal Screws for backup
- 1x 0.8mm Thickness Thermal Pads (Cut into appropriate size as need)

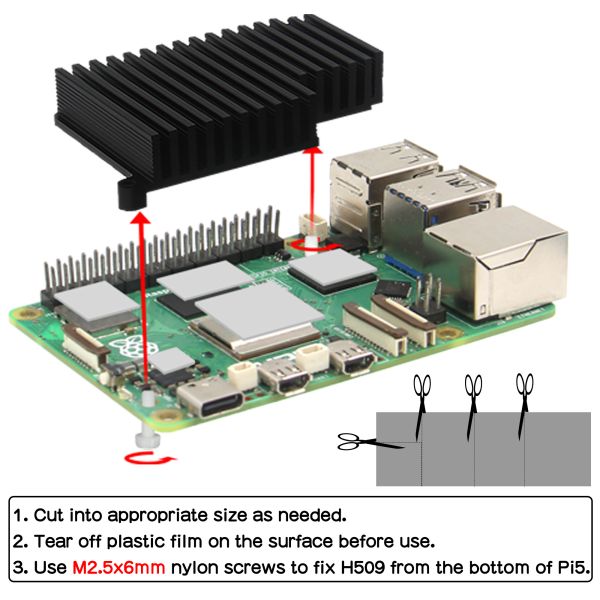

Installation
