X1509

Important Notes

The X1509 does not support system boot from SATA drives under the current CM5 firmware version.
The function, Automatic Drive Power Cut-off, only works with DC power input, not supported via the 4-pin ATX connector.
When 8× 3.5" HDDs are powered on simultaneously, the inrush current reaches 16A. DC power is not applicable; please use an ATX power supply only.
Over-voltage will permanently damage your hard drives! Please choose your power supply carefully.

Overview

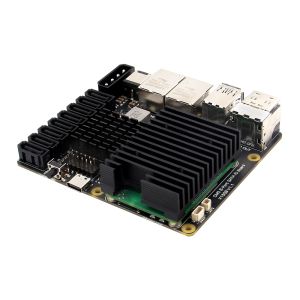

This X1509 board supports 8 SATA ports, delivering a high-speed and high-capacity storage solution for Raspberry Pi CM5. It reaches a total storage capacity of up to 176TB (22TB per single drive).
Designed with a compact form factor, it is equipped with multiple peripheral ports for extensive expansion.
Built-in high-efficiency DC/DC step-down converter provides a stable 5V 12A output. A single power supply is sufficient to power both the CM5 module and all connected SATA storage devices.

Ideal for building home media centers, personal NAS systems and CCTV video storage servers.

Features

Compatibility	Fully compatible with all variants of Raspberry Pi Compute Module 5 (CM5). RAM: 2GB, 4GB, 8GB, 16GB eMMC: 0GB (Lite), 16GB, 32GB, 64GB Wireless: both non‑wireless and wireless (Wi‑Fi/Bluetooth) models Tested and supported operating systems: Raspberry Pi OS (64-bit) OpenMediaVault (OMV)

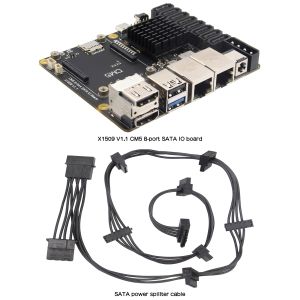

8 SATA Ports	Connect up to 8 SATA drives simultaneously, with a maximum total storage capacity of 176TB (22TB per drive). Note: Startup current reaches 16A with 8× 3.5" HDDs. DC power is not applicable; please use an ATX power supply only. Backward compatible with SATA 6G, 3G and 1.5G hard drives. It supports data transfer rates of 5.0, 3.0 and 1.5 Gbit/s. Splitter Cable Included Comes with a power SATA splitter cable to support up to 8 drives
Multiple Peripheral Ports	Compact form factor with rich ports and expansion. Dual Ethernet Ports for High-Performance Networking Features one 1GbE Gigabit Ethernet port and one 2.5GbE port with a maximum speed of 2500Mbps. Dual HDMI 2.0 Ports Supports dual 4K display output for multimedia playback and industrial applications. Dual MIPI DSI/CSI-2 Connectors 22-pin FPC connectors (0.5mm pitch), fully compatible with Raspberry Pi 5 CSI and DSI modules for seamless camera and display connection. 12-Pin GPIO Header Integrates general I/O ports, external power button and 12V PWM fan header, enabling DIY customization for enclosures and cooling systems. MicroSD Card Slot Works with Compute Module 5 Lite variants (models without onboard eMMC storage). USB Connectors USB-C: Dedicated for OS image loading on CM5 models with onboard eMMC. USB2.0 Type-A & USB3.0 Type-A: For connecting external devices such as USB flash drives, keyboards and mice. PWM Fan Connector Used for active heat dissipation. RTC Battery Connector Keeps the system clock accurate even when the device is powered off. Power Button Controls power-on and power-off for both CM5 and connected SATA devices.
Built-in LED Indicators	HDD/SSD Status LED Flashing: Data reading / writing Solid On: Drive connected normally Off: No drive detected Power Indicator: Red LED Activity Indicator: Green LED
Power Supply & Control	Built-in High-efficiency DC/DC Step-down Converters Deliver stable 5V 12A output. One single power supply can power the CM5 module and all attached SATA drives simultaneously. Automatic Drive Power Cut-off Automatically cuts power to SATA devices when CM5 shuts down. This function only works with DC power input; it is not supported via the 4-pin ATX connector.
Dual Power Input	Input Voltage: 12V DC ± 5% Warning: Over-voltage will permanently damage your hard drives! Recommended power supply for DC jack: For 8 × 2.5" SATA HDD/SSD: 12V 10A power adapter For 4 × 3.5" SATA HDD: 12V 10A power adapter Recommended power supply for 4-pin ATX connector: 12V 20A Warning: Only one power source shall be connected at a time.
Notes	The X1509 does not support system boot from SATA drives under the current CM5 firmware version.

Test & Reviews

Test Conditions

Interface board details	X1509 CM5 IO boards
Operation system	Raspberry Pi OS with desktop (Debian12 (bookworm), 64bit, Release date: May 6th 2025) openmediavault 7.0
Storage details	Samsung EVO 750 2.5" SATA SSD
Nework details	Xiaomi WiFi7 router BE6500 2.5G Ethernet port
