Overview

Due to the wide variety of screens on the market, the EDID recognition of different screens may have compatibility issues, which may lead to incorrect screen colors or abnormal screens or no display.

This LVDS2 board convert LVDS input signal to HDMI output, the resolution is VESA standard in default. If you need change to single 8 mode, please short the R20 on the LVDS2 board.

Because it is the DIY product, so sometimes there may be the compatibility problem. When it shows no signal or no sound, it may be the compability problem.

Features

LVDS input signal to HDMI output, the maximum bandwidth can reach 150MHz;
LVDS input interface adopts the general 30-pin socket FI-X30SSLA-HF, which supports dual 8 inputs, and the riginal screen cable can be used directly;
Double 8 mode in default
I2S sound input in default
VESA standard resolution in default
8bit in default
Not only supports standard HDMI signals, but also supports other graphics format signals, the common formats are as follows: 1920x1200, 1920x1080, 1600x1200, 1280x1024, 1280x720, etc.
Support LVDS signal to spread spectrum
Powered by 5V in the screen cable

Packing List

1 x LVDS to HDMI Converter with Cable (cable length: 22cm)

User Manual

CN3/CN4/CN6 Interface Definition

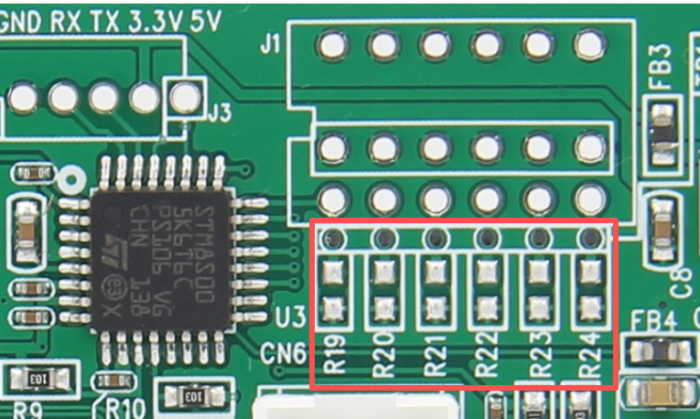

How to Change the Mode

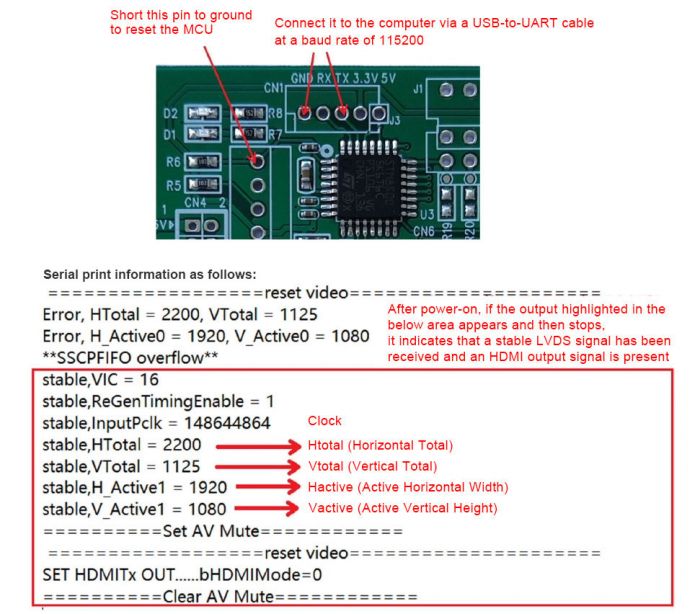

D1&D2 LED Indicator

After power on, D1 flashes,it indicates that the MCU is working normally. After receiving the LVDS signal, D2 is always on.

If D2 is not light on, it means that no LVDS signal is received, and the line sequence needs to be checked.

Enable comment auto-refresher

Anonymous user #16

2 months ago

Score 0

Is the cable pinout 1:1 with the schematics picture? Is the 2-row connector standard pin-header compatible 2.54mm pitch?

Permalink | Reply

2 months ago

Score 0

Hello，the cable pinout corresponds to the information on the board. please refer to the interface information on the board.the 2-row connector specification: 30pin 2-CH

Anonymous user #15

2 months ago

Score 0

What about 800x480 single channel LVDS ? I need to capture signal to HDMI (instead LCD LQ070T5GC01) Will it work?

Permalink | Reply

2 months ago

Score 0

Hi,This LVDS2 board convert LVDS input signal to HDMI output, the resolution is VESA standard in default. If you need change to single 8 mode, please short the R20 on the LVDS2 board.

Because it is the DIY product, we can not guarantee the compatibility, there will have compatibility issue, thanks for your understanding!

Anonymous user #14

5 months ago

Score 0

Has anyone used this or another product on a Tesla's round 4+2 pin LVDS connector at the screen or MCU? This board shows more pins.

Permalink | Reply

Anonymous user #13

8 months ago

Score 0

I have a atgames legends ultimate. I can not get this to work . I only get flashing d1. I have tried checking the line sequence. HELP

Permalink | Reply

Anonymous user #12

8 months ago

Score 0

does this support output to a lcd that has 1366 x 768 resolution?

Permalink | Reply

Anonymous user #11

9 months ago

Score 0

What is the difference between this LVDS2 model and what your site says is the "newest" LVDS 1.5 model? To be clear, I am NOT asking about V20 vs 1.5.

Is this LVDS2 model actually the newest model (newer than even the 1.5 model) but the text description on your site is just out of date? Or is 1.5 actually the newest model?

Permalink | Reply

9 months ago

Score 0

Hi,LVDS2 and LVDS 1.5/V20 are different manufacturers with different board designs and cables, there is no functional difference.

Anonymous user #10

12 months ago

Score 0

Hello i have 10 pin with wire lvds but i want to convert it to hdmi i want to know if there is any conversion board fot this kind of signal

Permalink | Reply

12 months ago

Score 0

Hi, we only have 30PIN LVDS to HDMI adapter boards.

Anonymous user #9

12 months ago

Score 0

hello my LM238WF2-SSK1 model screen is broken

Can I plug the 30pin lvds cable coming to this screen to this board and get the image on another monitor from hdmi output

Permalink | Reply

12 months ago

Score 0

Because it is the DIY product, so sometimes there may be the compatibility problem.There's no way to guarantee that.

Anonymous user #8

14 months ago

Score 0

What is the name of component U1 or can you direct me to a datasheet? I applied a too high voltage and it blew up. I want to have a look to replace it.

Permalink | Reply

14 months ago

Score 0

Hello, we recommend that you buy a new LVDS2, I'm sorry

Anonymous user #7

14 months ago

Score 0

Hello, I want to input 3ch I2S signals.

Is the input specification of the I2C terminal of this product 1ch?

Permalink | Reply

14 months ago

Score 0

Hello, LVDS2 supports I2S 2-Channel

Anonymous user #6

19 months ago

Score 0

Hello, my display runs on 3.3V. So that is what is available on the cable. Is that too low for this to work? I don't see the D1 LED flash when I power it on.

What is the maximum input voltage it can use?

Thank you.

Permalink | Reply

19 months ago

Score 0

Hello, it should be that the voltage you connected is too low, you need to connect 5V

Anonymous user #5

20 months ago

Score 0

Is this working with 6bit single 800x480 LVDS ? Can you test it for this resolution?

Thanks

Permalink | Reply

20 months ago

Score 0

Hello, it supports mode:6bits input, solder joint:short R19, but 800x480 has not been tested by us and cannot be tested at present. You can refer to VESA Proposed StandardFile:VESA-Timing-New.pdf

Anonymous user #4

21 months ago

Score 0

Hello, what is the maximum pixel clock frequency?

Permalink | Reply

Anonymous user #3

21 months ago

Score 0

Where is EVEN CLOCK signals?

Permalink | Reply

Anonymous user #3

21 months ago

Score 0

what's mean 'swap' on tp6?

Permalink | Reply

Anonymous user #2

22 months ago

Score 0

What’s the difference between this and v1.5/v20

Permalink | Reply

22 months ago

Score 0

Please refer toLVDS Adapter; v20 has two LVDS signal interfaces.

Anonymous user #1

23 months ago

Score 0

Is CN4 used for LVDS input or LVDS output?

Permalink | Reply

23 months ago

Score 0

Hello， This LVDS2 board convert LVDS input signal to HDMI output， does not have LVDS signal output.
