X1501 CM5 IO Carrier Board-Interface
X1501 CM5 IO Carrier Board
X1501 CM5 IO Carrier Board

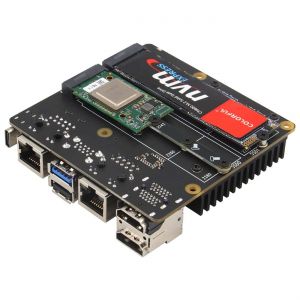

Support Hailo-8 AI Accelerator


Overview

The X1501 is a purpose-built IO board tailored for the Raspberry Pi Compute Module 5 (CM5) that integrates dual Ethernet connectivity (1GbE and 2.5GbE), two full-size M.2 NVMe slots, and a range of peripherals into an ultra-compact design. This carrier board is engineered to simplify system development, enabling you to quickly build solutions using readily available off-the-shelf components, such as existing Raspberry Pi HATs and M.2 NVMe devices.

For ease of integration, the board features a streamlined layout with major user connectors positioned along one edge, making enclosure design straightforward and efficient. Whether you're developing with the Compute Module 5 or deploying it as part of an embedded end product, the X1501 is designed to meet your needs with flexibility and performance.

Model Compatible with Description Matching Case Support Hailo-8 AI Accelerator
X1501 V1.0 Raspberry Pi CM5 CM5 IO board 1GbE + 2.5GbE M.2 NVMe [https://wiki.geekworm.com/X1501#Matching_Case X1500-C1 Yes
X1500 V1.0 Raspberry Pi CM5 CM5 IO board 1GbE USB3.0 M.2 NVMe [https://wiki.geekworm.com/X1500#Matching_Case X1500-C1 Yes

Features

For use with

Raspberry Pi Compute Module 5 (CM5)

Key Features
  • Compact Design (87x88x25mm): Combines a small footprint with a rich array of I/O peripherals for versatile applications.
  • Dual Ethernet Ports: Features both 1GbE with PoE+ support (for simplified power delivery) and a 2.5GbE port capable of speeds up to 2500Mbps (2.5Gbps) for high-performance networking.
  • Dual M.2 2280 NVMe SSD Slots: Supports up to 8TB (4TB+4TB) via PCIe 2.0 (5Gbps) for fast data transfers and boot times, compatible with M.2 NVMe SSDs in 2280, 2242, and 2230 form factors.
  • Dual HDMI 2.0 Ports: Enables dual 4K display output for multimedia or industrial use cases.
  • Dual MIPI DSI/CSI-2 Connectors: 22-pin FPC connectors (0.5mm pitch) compatible with Raspberry Pi 5 CSI and DSI modules for seamless camera and display integration.
  • MicroSD Card Slot: Supports Compute Module 5 Lite variants (without onboard eMMC).
  • Raspberry Pi HAT+ Compatibility: Reuse existing Raspberry Pi HATs to save time and reduce development costs.
  • Convenient Power Button: Easily wake or shut down the Compute Module 5 with a single press.
  • RTC Battery Socket (CR1220 coin battery is not included): Ensures accurate timekeeping during power interruptions.
  • PWM Fan Support: Includes a fan power connector for adjustable cooling in demanding environments.
  • USB-C Port: Handles both power delivery and OS image loading directly into the CM5’s eMMC.
  • Configurable Jumpers: Allows disabling features like wireless connectivity or EEPROM writing for customization.
  • Streamlined Connector Layout: USB, HDMI, Ethernet, and power ports are grouped along one edge for clean cable management and easy enclosure integration.
Technical Specification

Power supply:

  • 5.1Vdc +/-5% 5A power via USB-C power supply


Connectivity:

  • 1 x USB-C (Power in and OS image loading)
  • 1 x 1Gigabit RJ45 Ethernet with PoE+ HAT+ support (requires separate Raspberry Pi PoE+ HAT+)
  • 1 x USB2.0 Type-A
  • 1 x USB3.0 Type-A
  • 1 x 2.5 Gigabit RJ45 Ethernet
  • Standard 40-pin GPIO header
  • microSD card socket for Compute Module 5 Lite modules
  • 2 x M.2 M key NVMe sockets
  • 4-pin fan connector
  • 2 x MIPI DSI/CSI-2 FPC connectors (22-pin 0.5 mm pitch cable)
  • Raspberry Pi HAT+ connector
  • RTC battery socket

Video: 2 x full-size HDMI 2.0 connectors


Input power:

  • External +5V USB-C PSU
  • Power button to wake and shut down Compute Module 5


Form factor: 85mm x 87mm

Important Notes

For optimal performance, please use the official Raspberry Pi 27W USB-C Power Supply or an alternative power supply capable of delivering 5.1V at 5A. An incompatible power supply with a lower output voltage may fail to power on the system..

Packing List

CM5 carrier board Kit

  • X1501 V1.0 CM5 carrier board x1
  • M.2-A1 extension board x2 (to fix M.2 2230 and 2242 SSDs)
  • 2.54mm jumer cap x2
  • M2*3 screw x 6


User Manual

Matching Case

X1500-C1 case is designed for the raspberry pi CM5 & X1500/X1501 IO Board only, compatible with C519 heatsink.

  • Case dimensions: 110 x 90 x 33 mm / 4.33 x 3.54 x 1.30 inches

  • X1500-C1 packing list

  • X500-C1

FAQ

Q1: Q: Why can't X1500/X15011 boot up?

A: Due to PD power compatibility issues, some PD power supplies may cause X1500/X1501 to fail to boot up. Please replace the official Raspberry Pi 5 power supply or Geekworm PSU20 power supply.

Q2: Q: Does the X1500/X1501 support Hailo-8 M.2 AI Accelerator?

A: According to the test, the X1500/X1501 can support one Hailo-8 M.2 AI Accelerator Module and one M.2 Key-M NVMe SSD.
